Chevrolet Sonic Owner's Manual: Instrument Panel Fuse Block

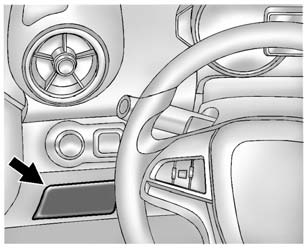

The instrument panel fuse block is on the underside of the driver side instrument panel.

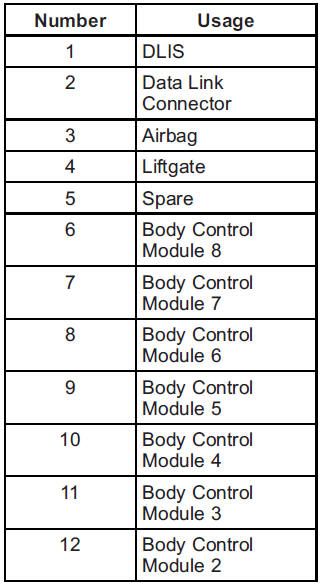

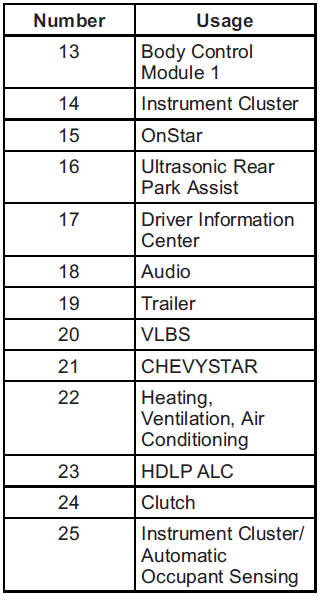

The vehicle may not be equipped with all of the fuses, relays, and features shown.

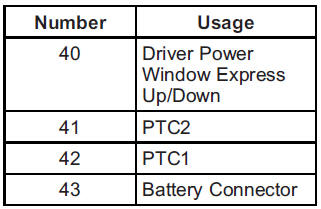

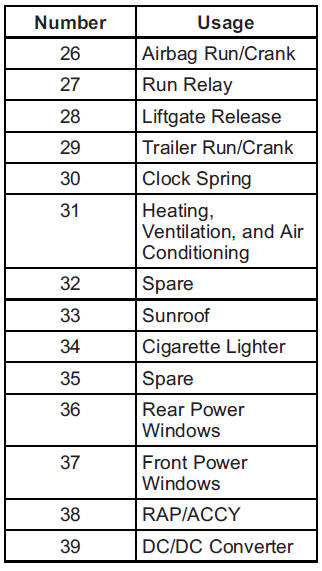

Engine Compartment Fuse Block
LUV and LUW Engines
The engine compartment fuse block is on the driver side of the vehicle, near
the battery.
