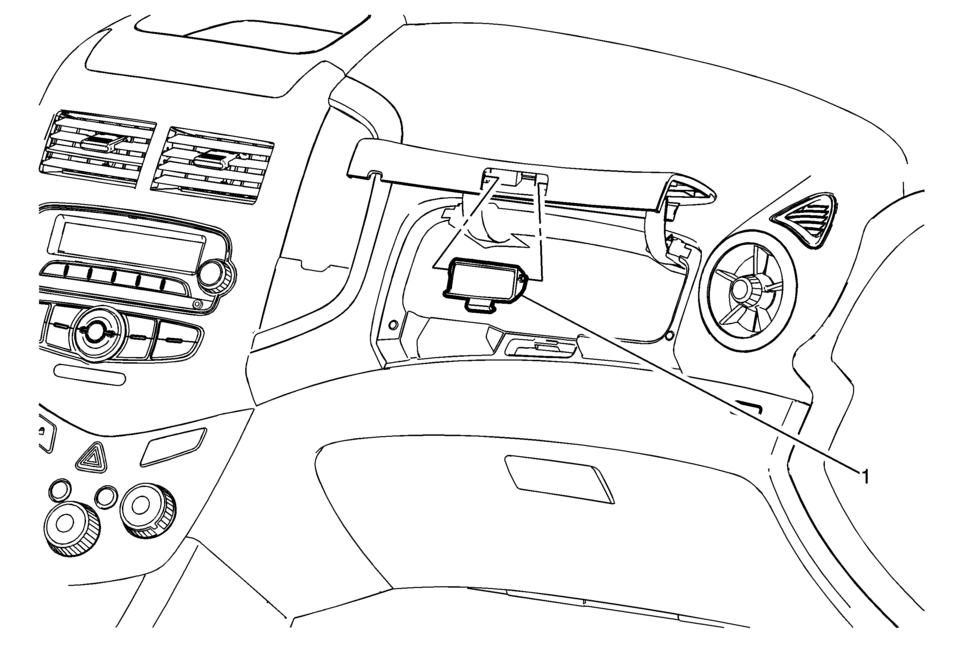

Callout |
Component Name |
---|---|
1 |
Instrument Panel Upper Compartment Door Latch Procedures
|
Tread Wear Indicators Description
The original equipment tires have tread wear indicators that show when you should
replace the tires.
The location of these indicators are at 60 degree intervals around the outer
diameter of the tire. The indicators appear as a 6 mm (0.25 in) wide band when the
tire trea ...
Charge Air Cooler Outlet Air Hose Replacement
Removal Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
Loosen the clamp (1) at the charge air cooler outlet pipe (2) to throttle
body (3).
Disconnect the intake air pressure and temperature sensor harness connect ...
Camshaft Position Sensor Replacement
Camshaft Position Sensor Replacement
Callout
Component Name
1
Camshaft Position Sensor Fastener
Caution: Refer to Fastener Caution.
Tighten
6 Y (54 lb in)
2
...
