Chevrolet Sonic Repair Manual: Liftgate Strut Replacement
|
Callout |
Component Name |
|---|---|
|
1 |

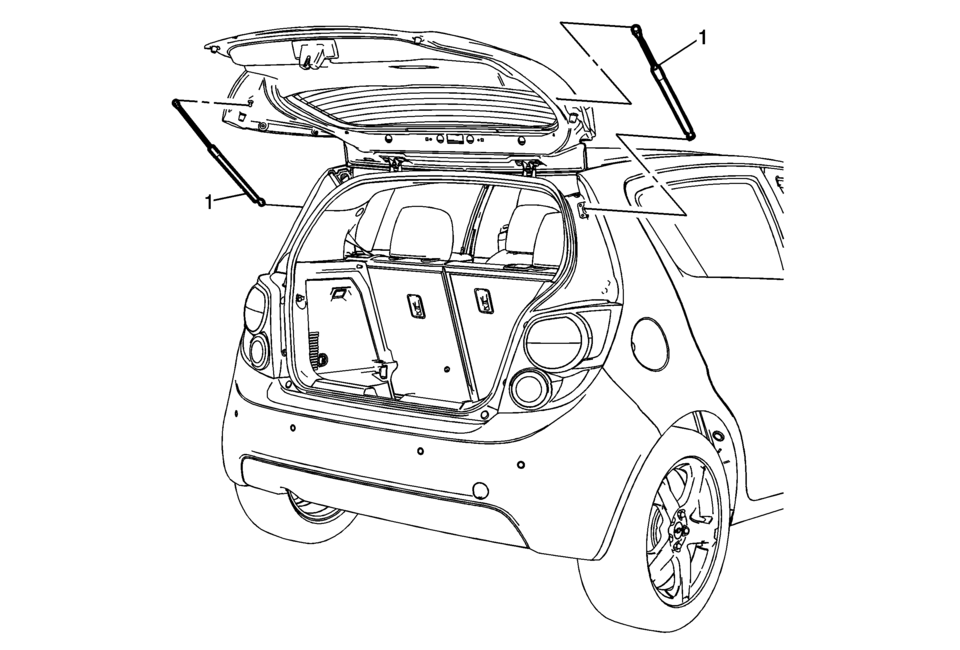

Liftgate Strut Warning: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Caution: Apply pressure only at the end of the liftgate/hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.
|
Liftgate Replacement
Liftgate Replacement
Callout
Component Name
Preliminary Procedures
Disconnect the electrical connectors.
Disconnect the liftgat ...
Liftgate Weatherstrip Replacement
Liftgate Weatherstrip Replacement
Callout
Component Name
1
Liftgate Weatherstrip
Procedure
Clean the area where t ...
