Chevrolet Sonic Repair Manual: Manual Shift Shaft Seal Installation
|
Callout |
Component Name |
|---|---|
|
1 |

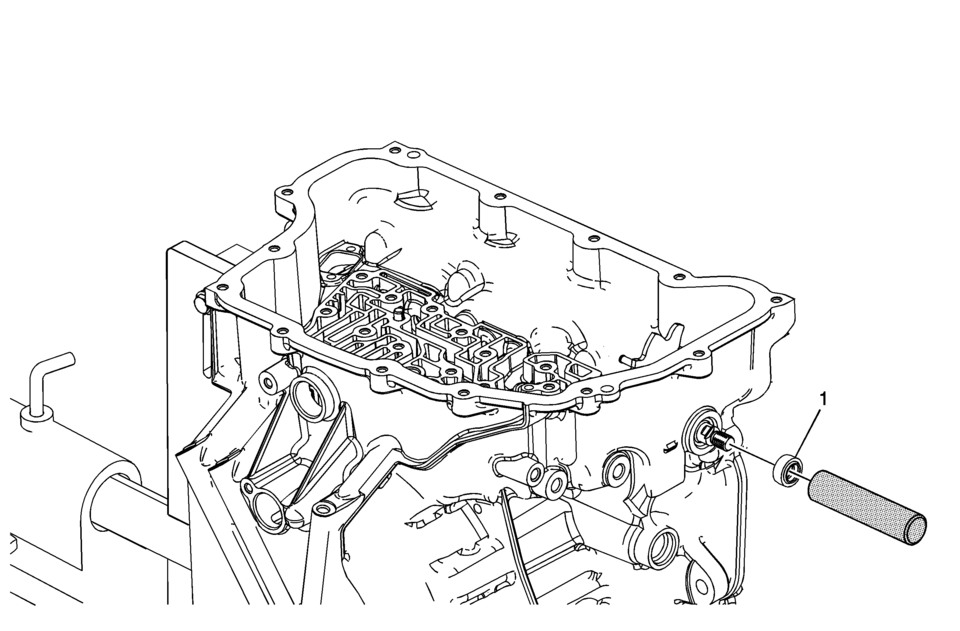

Manual Shift Shaft Seal Special Tool
DT-49101 Seal Installer For equivalent regional tools, refer to Special Tools. |
Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl
Actuator Removal
Table 1:
Manual Shaft Detent (w/Shift Position Switch) Lever
Assembly Removal
Table 2:
Park Pawl Actuator Guide Removal
Manual Shaft Detent (w/Shift Position
Sw ...
Manual Shift Shaft Seal Removal
Manual Shift Shaft Seal Removal
Callout
Component Name
1
Manual Shift Shaft Seal
Note: Use the DT-45201 seal rem ...
