Chevrolet Sonic Repair Manual: Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Manual Shift Detent Lever with Shaft Position Switch Assembly and Park Pawl Actuator Removal

Table 1: Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal
Table 2: Park Pawl Actuator Guide Removal

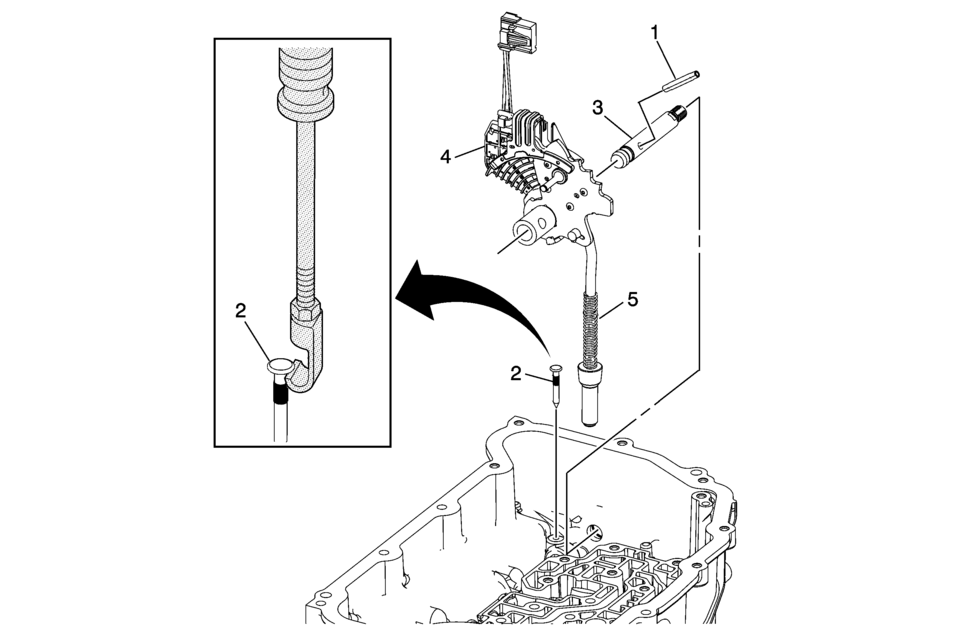

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal


Manual Shaft Detent (w/Shift Position Switch) Lever Assembly Removal

Callout

Component Name

1

Manual Shaft Detent Lever Hub Pin

Note:

Use side cutter to remove the pin (1) and discard.

2

Manual Shift Shaft Pin

Note:

Discard the pin. It is not reusable.

Special Tools

  • DT-23129 Universal Seal Remover
  • GE-6125-1B Slide Hammer

For equivalent regional tools, refer to Special Tools.

3

Manual Shaft

4

Manual Shaft Detent (w/Shift Position Switch) Lever Assembly

5

Park Pawl Actuator Assembly

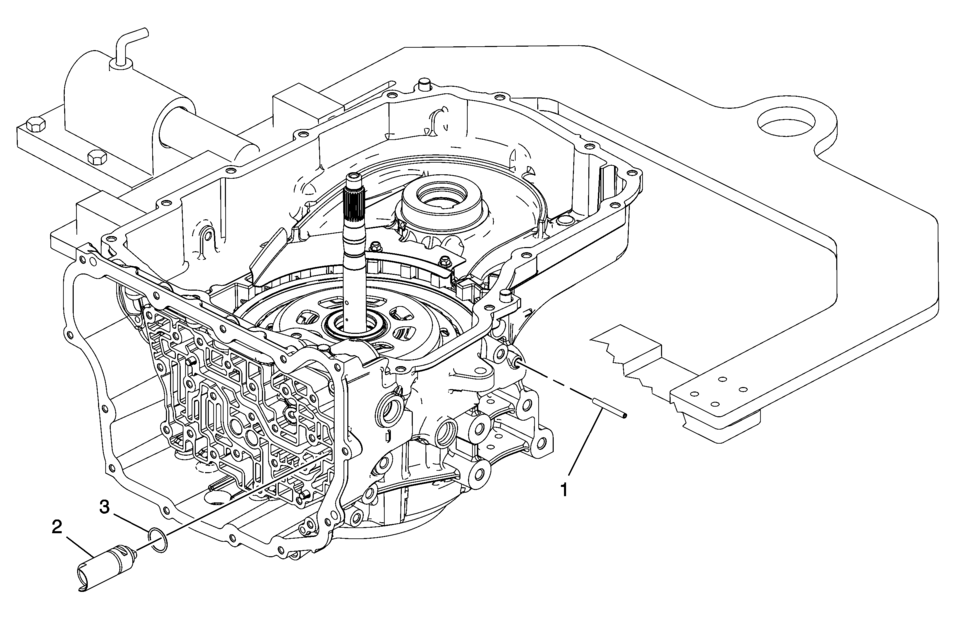

Park Pawl Actuator Guide Removal


Park Pawl Actuator Guide Removal

Callout

Component Name

1

Park Pawl Actuator Guide Pin

Note:

Use side cutter to remove the pin (1) and discard.

2

Park Pawl Actuator Guide Assembly

3

Park Pawl Actuator Guide Assembly Seal

Note:

Discard the seal. It is not reusable.
