Chevrolet Sonic Repair Manual: Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 1)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Transmission Oil Cooler / Transmission Unit / Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 1)



Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble

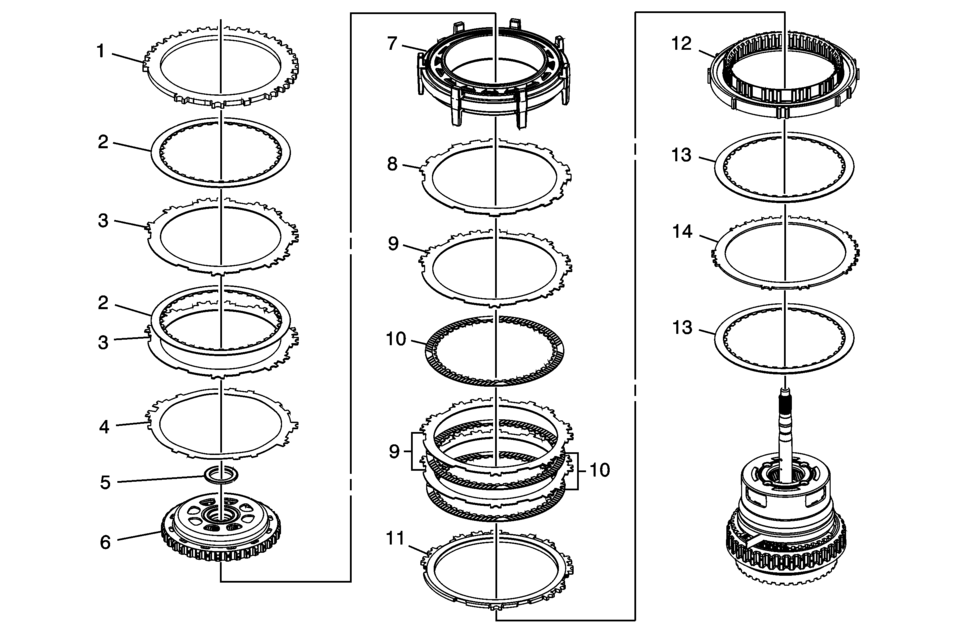

Callout

Component Name

1

1??? Clutch Backing Plate

2

1??? Clutch Plate Assembly (Qty: 2)

3

1??? Clutch Plate (Qty: 2)

4

1??? Clutch Waved Plate

5

Output Sun Gear Thrust Bearing Assembly

Note:

The sun gear thrust bearing may be stuck to the driven sprocket hub.

6

Output Sun Gear Assembly

7

Low-Reverse and 1??? Clutch Housing Assembly

8

Low and Reverse Clutch Apply Plate

9

Low and Reverse Clutch Plate (Qty: 3)

10

Low and Reverse Clutch Plate Assembly (Qty: 3)

11

Low and Reverse Clutch Backing Plate

12

Low and Reverse Clutch Assembly (OWC)

13

2? Clutch Plate Assembly (Qty: 2)

14

2? Clutch Plate (Qty: 1)

Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation
Low and Reverse Clutch Assembly and Low and Reverse Clutch Plate Installation Callout Component Name 1 Low and Reverse C ...

Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble (Gen 2)
Low and Reverse and 1-2-3-4 Clutch Housing, Low and Reverse Clutch Assembly, Output Sun Gear, and 2-6 Clutch Plate Disassemble Callout Component Name ...
