Rear Side Door Upper Hinge and Lower Hinge Replacement

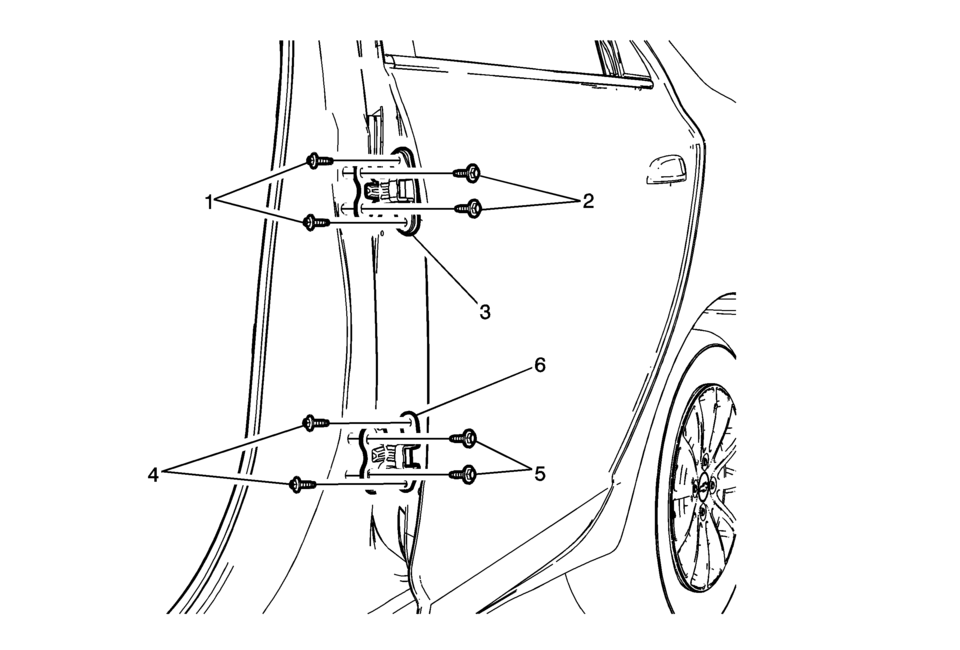

Callout

Component Name

1

Rear Side Door Upper Hinge to Body Bolts (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Procedures

  1. Before removing the door, apply a double layer of masking tape around the perimeter of the painted surfaces.
  2. Mark the location of the hinge being removed.
  3. Support the door before removing the hinge bolts.
Tighten


32?€‰Y (24?€‰lb?€‰ft)

2

Rear Side Door Upper Hinge to Door Bolts (Qty:?€‰2)

Tighten


25?€‰Y (18?€‰lb?€‰ft)

3

Rear Side Door Upper Hinge

4

Rear Side Door Lower Hinge to Body Bolts (Qty:?€‰2)

Tighten


32?€‰Y (24?€‰lb?€‰ft)

5

Rear Side Door Lower Hinge to Door Bolts (Qty:?€‰2)

Tighten


25?€‰Y (18?€‰lb?€‰ft)

6

Rear Side Door Lower Hinge

Procedure

If the door striker needs adjust. Refer to Rear Side Door Lock Striker Adjustment.
