Chevrolet Sonic Repair Manual: Fuel Tank Heat Shield Replacement

Chevrolet Sonic Repair Manual / Powertrain / Engine / Fuel System / Fuel Tank Heat Shield Replacement

Removal Procedure
  1. Support the fuel tank with a suitable jack.

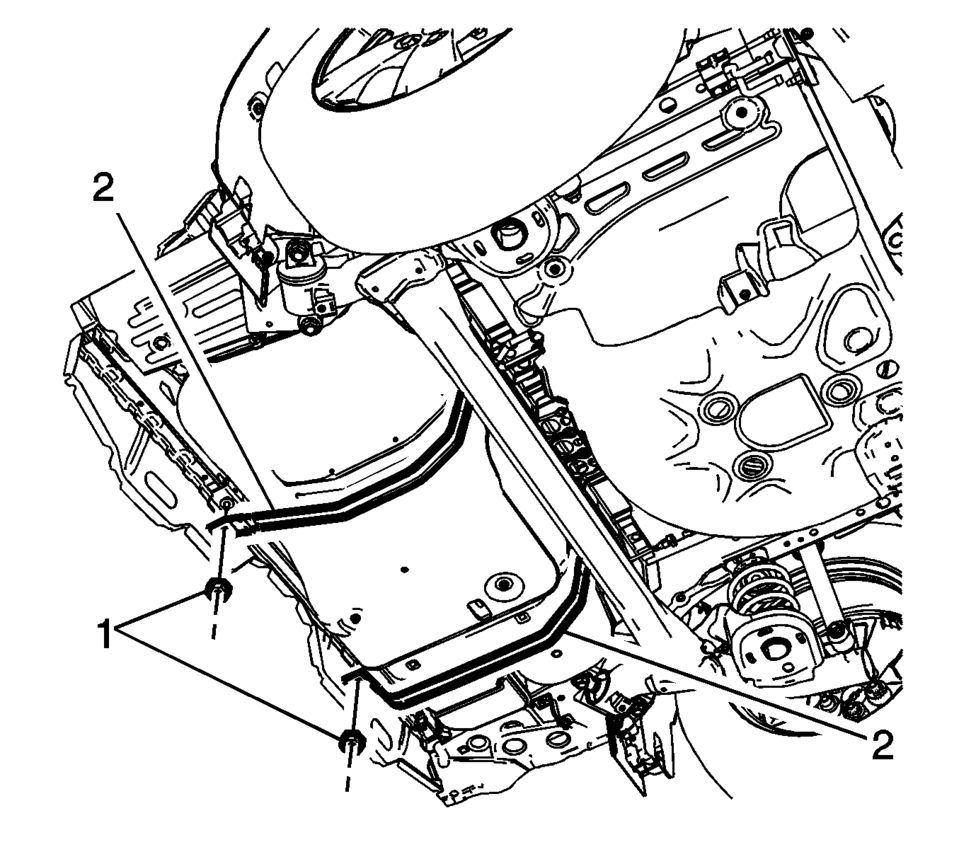

  2. Remove the fuel tank strap fasteners (1) and lower the fuel tank straps (2).

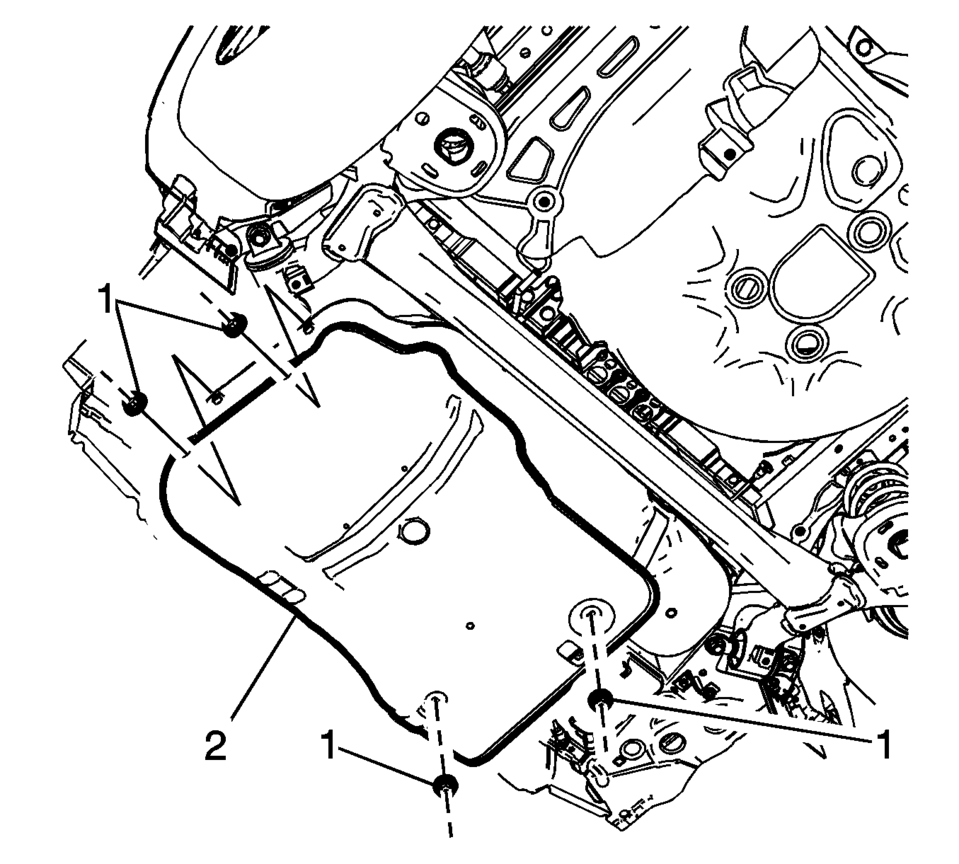

  3. Remove the fuel tank heat shield fasteners (1) and remove the fuel tank heat shield (2).
Installation Procedure


    Caution:

    Refer to Fastener Caution.

  1. Install the fuel tank heat shield (2) and tighten the fasteners (1) to 10 Y (89 lb in)

    .



  2. Install the fuel tank straps (2) and tighten the fasteners (1) to 22 Y (16 lb ft)

    .

Fuel Tank Fuel Pump Module Replacement (Steel Tank)
Special Tools EN-48279 Fuel Sender Lock Ring Wrench For equivalent regional tools, refer to Special Tools. Removal Procedure Relieve the fuel system pressure. Refer to Fuel Pressure ...

Fuel Tank Replacement
Removal Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection. Relieve the fuel pressure. Refer to Fuel Pressure Relief. ...
