Chevrolet Sonic Repair Manual: Mirror Adjustment
- Exterior Mirrors
-

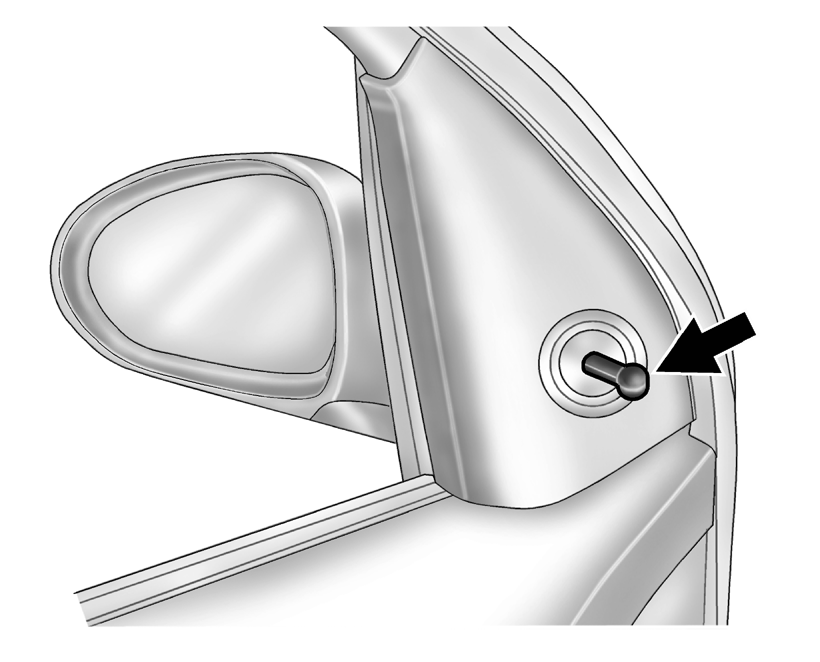

Manual Outside Mirrors
Move the control up, down, or side to side to adjust the mirror.
See Manual Mirrors.

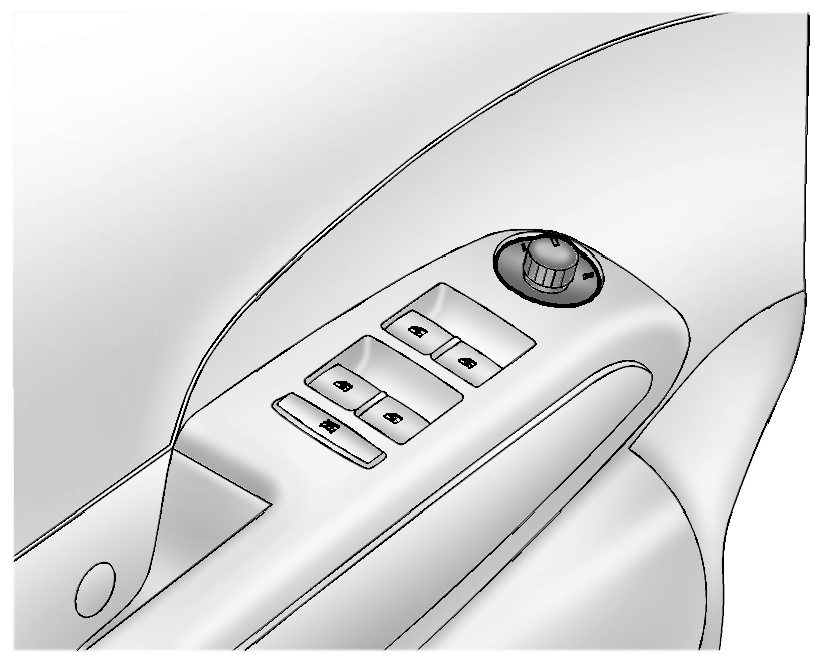

Power Outside Mirrors
For vehicles with power outside mirrors:
- Select the mirror by moving the selector switch to L for the driver side or R for the passenger side.
- Use the control knob to move the mirror in the desired direction.
See Power Mirrors.
- Interior Mirror
-
Hold the inside rearview mirror in the center to move it for a clearer view behind your vehicle. Adjust the mirror to avoid glare from the headlamps behind you. Push the tab forward for daytime use and pull it for nighttime use.
See Manual Rearview Mirror.
Mirrors
...
Outside Mirror Description and Operation
Power Mirror System Components
The power mirror system consists of the following components:
Outside rearview mirror switch
Mirror selector switch
Driver outside rearview mirror
...
