Chevrolet Sonic Repair Manual: Oil Pump Cleaning and Inspection
- Remove the external rotor with the internal rotor.
- Visually inspect the components.
- Install the external and the internal rotors.

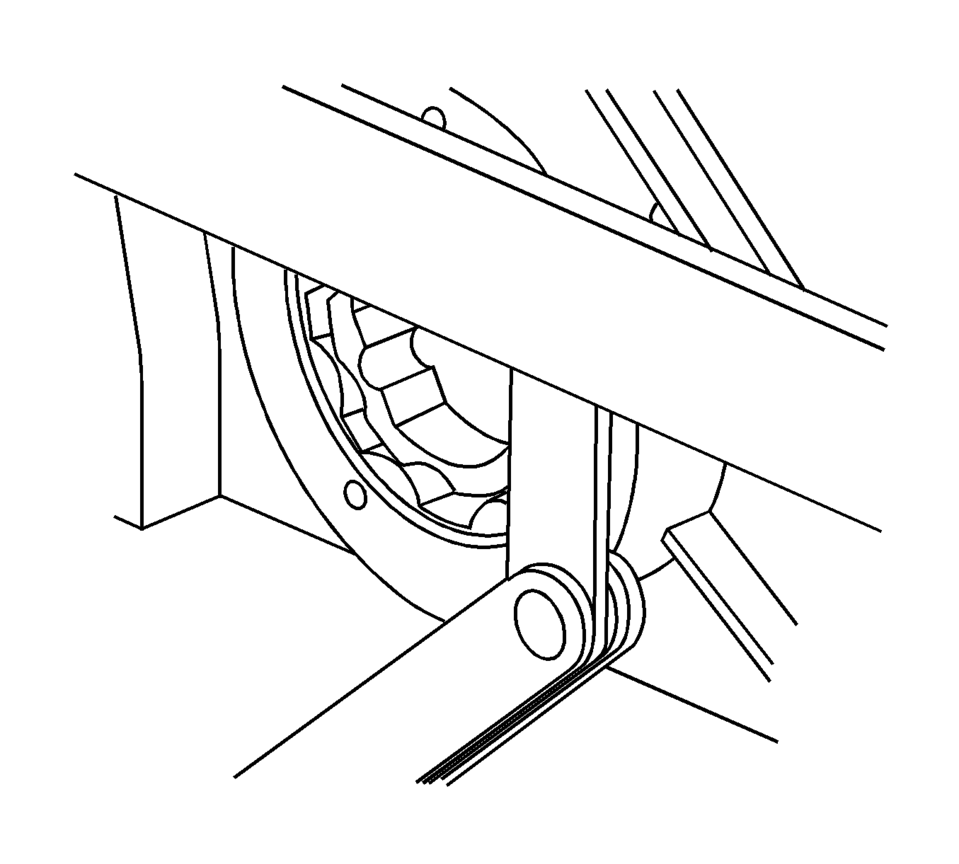

- Inspect the axial clearance of the rotors in respect to the control unit
housing upper edge.
Specifications
Permissible measurement is 0.02?E.058 mm (0.00079?E.00228 in).
Engine Front Cover with Oil Pump Replacement
Removal Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable
Disconnection and Connection.
Set the engine to TDC. Refer to Camshaft Timing Chain Inspec ...
Oil Pump Replacement
Removal Procedure
Remove the engine front cover. Refer to Engine Front Cover with Oil
Pump Replacement.
Remove the 8 oil pump cover bolts (1).
Remove t ...
