Chevrolet Sonic Repair Manual: Passenger Compartment Air Filter Replacement (LHD)
|

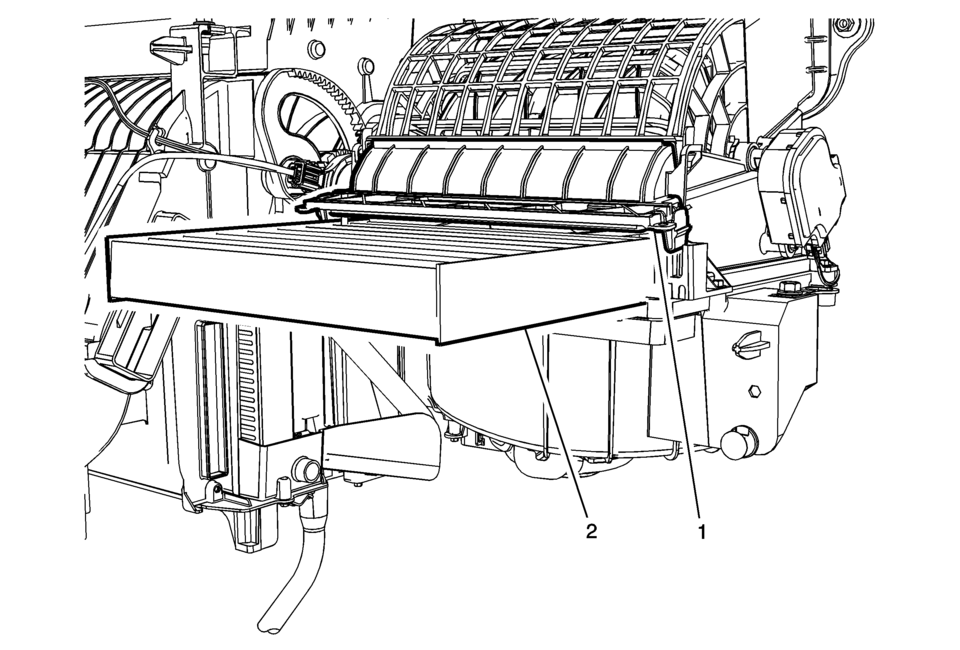

Callout |
Component Name |
|---|---|
|
Preliminary Procedure
Remove IP compartment. Refer to Instrument Panel Lower Compartment Replacement. |
|
|
1 |
Passenger Compartment Air Filter Service Lid Retainer Procedure
Release the retainer and open the service lid. |
|
2 |
Passenger Compartment Air Filter |
