Chevrolet Sonic Repair Manual: Radiator Grille Emblem/Nameplate Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Front Grille / Radiator Grille Emblem/Nameplate Replacement



Radiator Grille Emblem/Nameplate Replacement

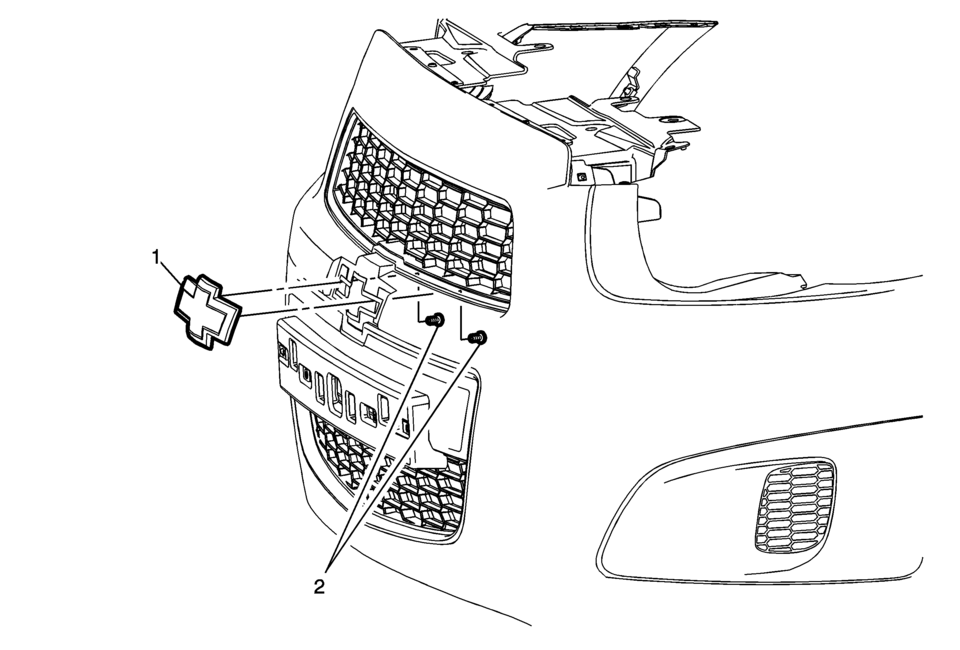

Callout

Component Name

Preliminary Procedure

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement.
  2. Remove the front bumper energy absorber. Refer to Front Bumper Energy Absorber Replacement.

1

Radiator Grille Emblem?€‰/?€‰Nameplate

2

Radiator Grille Emblem?€‰/?€‰Nameplate Screw (Qty:?€‰2)

Radiator Grille Bumper Replacement
