Rear Bumper Fascia Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the screws from the rear wheelhouse liners to the rear fascia. Refer to Rear Wheelhouse Liner Replacement.
  2. Disconnect the rear electrical connectors.

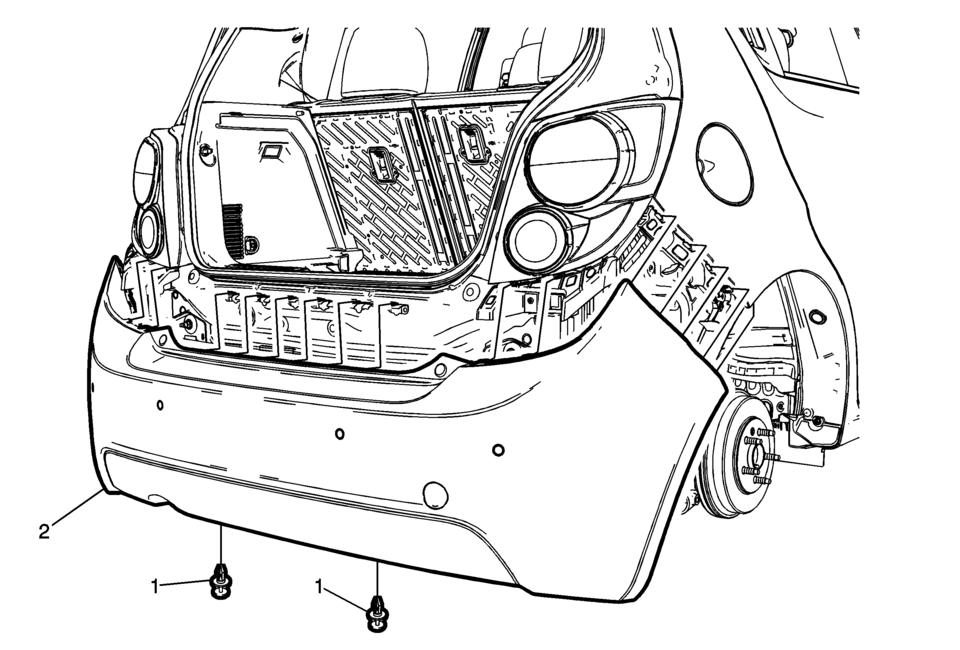

1

Rear Fascia Lower Push-In Retainer (Qty:?€‰2)

2

Rear Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the bracket to separate the joint slightly.
  2. Spray a mixture of soap and clean drinkable water into the joint, to act as a lubricant.
  3. Insert a small flat-bladed tool or plastic trim tool into the fascia slot and depress the tabs one at a time. Pull the rear bumper fascia carefully rearward and outward in order to release the retaining tabs from the rear bumper fascia guides.
  4. Transfer parts as needed.
