Rear Bumper Fascia Tow Eye Access Hole Cover Replacement

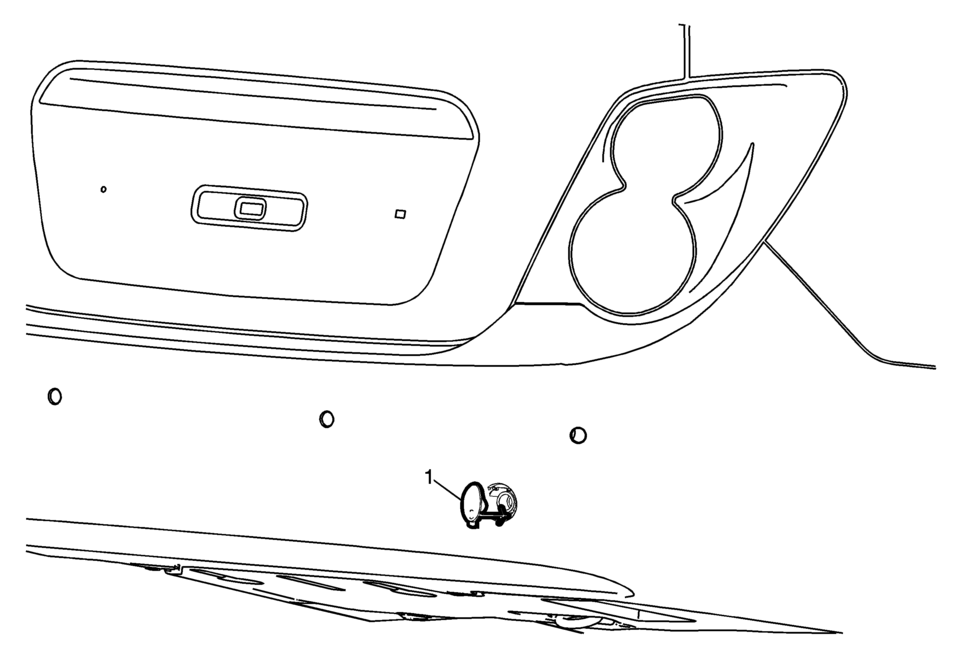

Callout

Component Name

1

Rear Bumper Fascia Rear Tow Eye Access Hole Cover

Procedure

  1. Using a small flat-bladed tool, release the cover from the rear bumper fascia.
  2. Using needle nose pliers, release the v-notch hook from the square in the rear fascia and remove.
