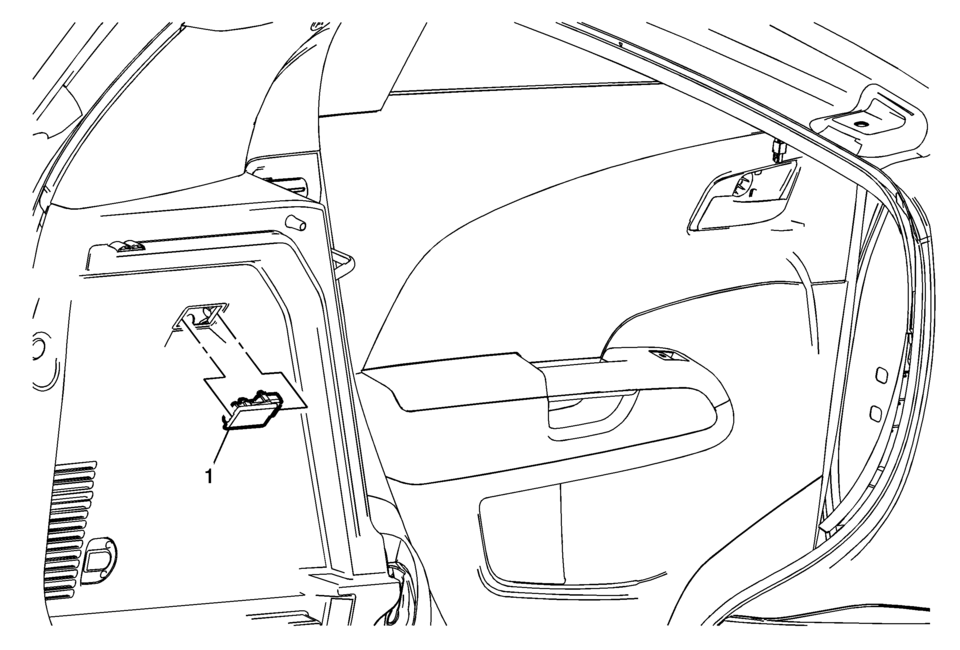

Rear Compartment Courtesy Lamp Replacement
Callout	Component Name
1	Rear Compartment Courtesy Lamp Assembly Procedure Use the appropriate trim tool in order to release the lamp assembly from the rear quarter trim panel. Disconnect the electrical connection.

Cargo Center Courtesy Lamp Bulb Replacement (Sedan)

Cargo Center Courtesy Lamp Bulb Replacement Callout Component Name 1 Rear Compartment Courtesy Lamp Refer to Rear Com ...

Rear Compartment Courtesy Lamp Replacement (Sedan)

Rear Compartment Courtesy Lamp Replacement Callout Component Name 1 Rear Compartment Courtesy Lamp Assembly Procedure ...
