Rear Seat Back Cushion Pivot Support Replacement

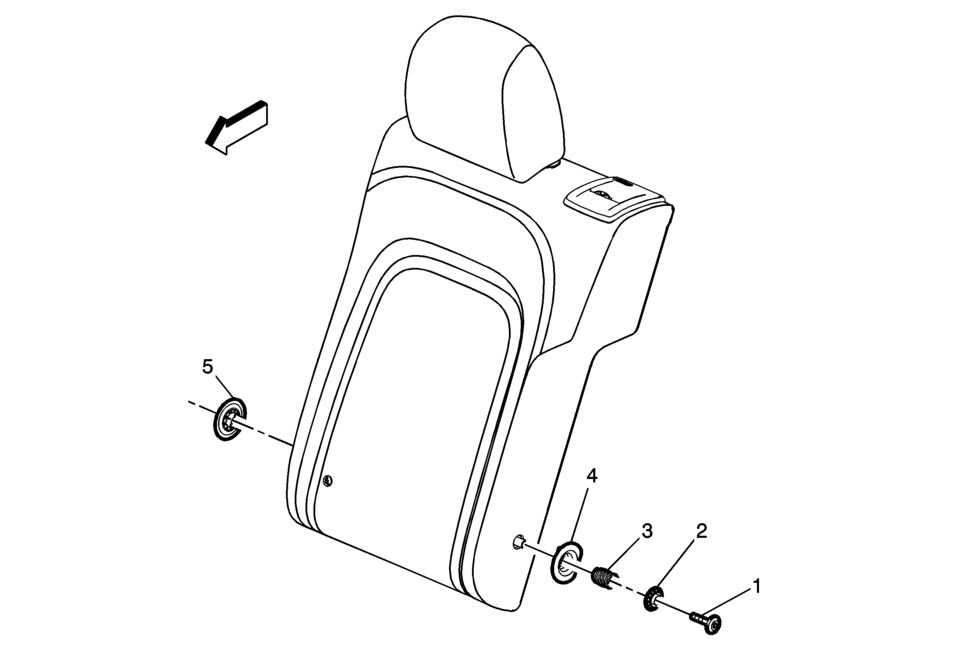

Callout

Component Name

Preliminary Procedure

Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation

1

Rear Seat Back Outer Pivot Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


23?€‰Y (17?€‰lb?€‰ft)

2

Rear Seat Back Cushion Outer Pivot Bushing

3

Rear Seat Back Cushion Outer Pivot Bolt Spring

4

Rear Seat Back Cushion Pivot Support Housing

5

Rear Seat Back Center Finish Cover
