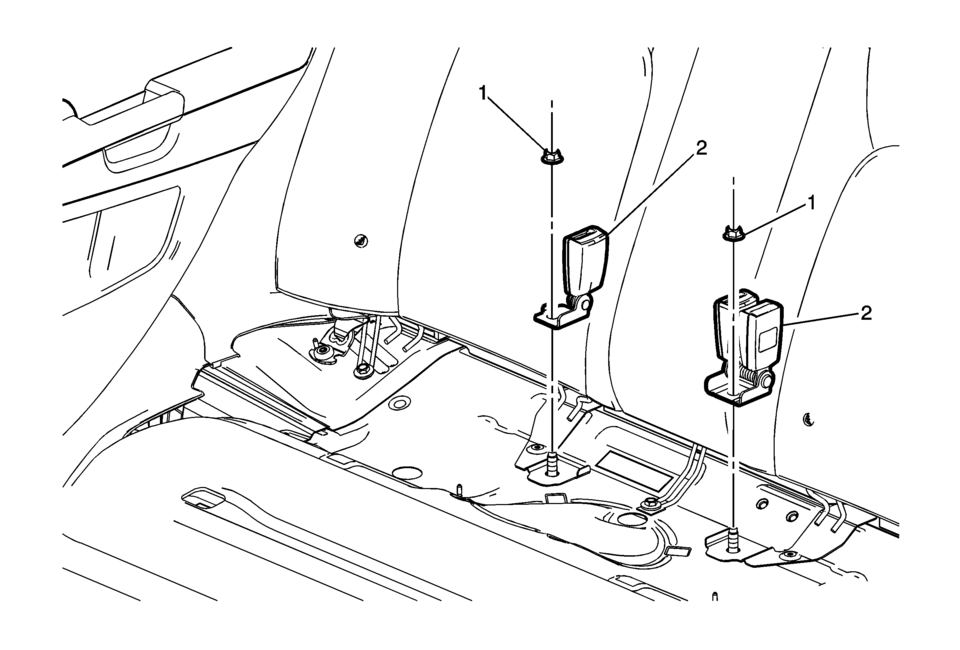

Callout |
Component Name |
---|---|
Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation. |
|
1 |
Rear Seat Belt Buckle Fastener (Qty:?€‰2) Caution: Refer to Fastener Caution.
45?€‰Y (33?€‰lb?€‰ft) |
2 |
Rear Seat Belt Buckle Assembly (Qty:?€‰2) |
Adhesive Installation of Rear Windows
Warning: Refer to Glass and Sheet Metal Handling Warning.
Use a urethane adhesive systems which meet GM Specification GM?€‰3651G.
Remove all mounds or loose pieces of urethane adhesive from the pinchweld
area.
If the original window is being reused, remove all but approxi ...
Timing Belt Tensioner Installation
Special Tools
EN-45059 Angle Meter
Clean the timing belt tensioner thread.
Install the timing belt tensioner (2).
Caution: Refer to Fastener Caution.
Caution: Refer to Torque-to-Yield Fastener Caution.
Install a NEW timing belt tensioner bolt (1) a ...
Air Cleaner Inlet Duct Replacement
Removal Procedure
Remove the right front wheelhouse liner. Refer to Front Wheelhouse Liner
Replacement.
Remove the upper intake air duct plastic fastener (1).
Pull the lower portion of the intake air duct outward to release the
duct from the rub ...
