Callout |
Component Name |
---|---|
1 |

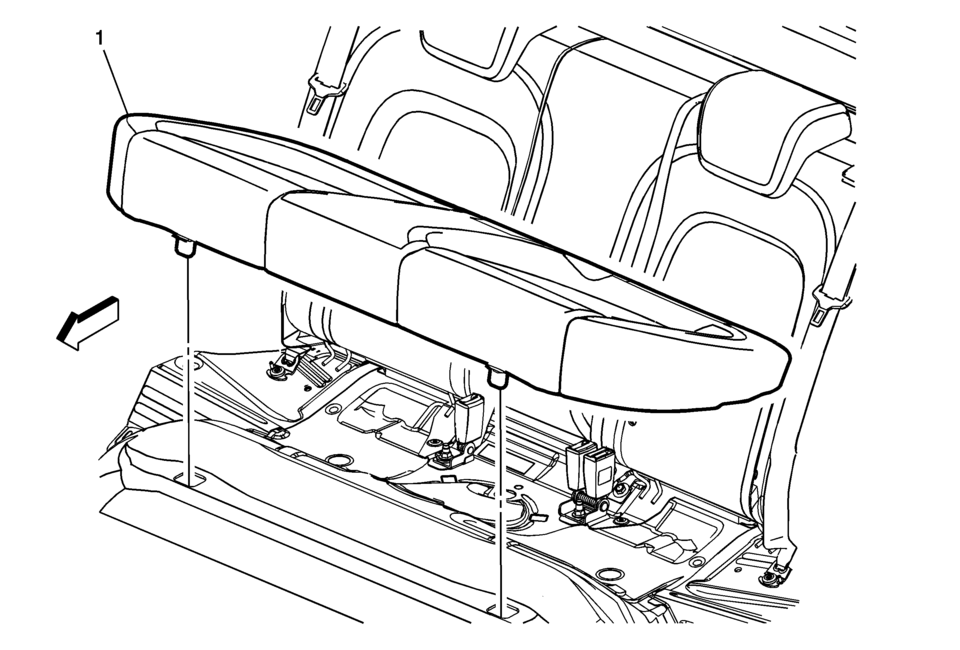

Rear Seat Cushion Replacement Procedure
|
Headlining Trim Panel Replacement (Hatchback with Sunroof)
Headlining Trim Panel Replacement
Callout
Component Name
Warning: Do not attempt to repair or alter the head impact
energy-absorbing material glued to the headliner or to the garnish trims.
If the material is damaged ...
Secondary Air Injection Pump Removal
Disconnect the secondary air injection pump pipe (3). Refer to Plastic Collar
Quick Connect Fitting Service.
Remove the secondary air injection pump nut (2) and the 2 secondary air
injection pump bolts (4).
Remove the secondary air injection pump (1 ...
Camshaft Timing Chain Inspection
Special Tools
EN-952 Fixing Pin
EN-953-A Fixing Tool
EN-49977-100 Transmitter Disc Fixation
For equivalent regional tools, refer to Special Tools.
Remove the ignition coil. Refer to Ignition Coil Replacement.
Remove the camshaft cover. Refer to Camshaft Cover Replacement.
...
