Rear Side Door Weatherstrip Replacement - Door Side

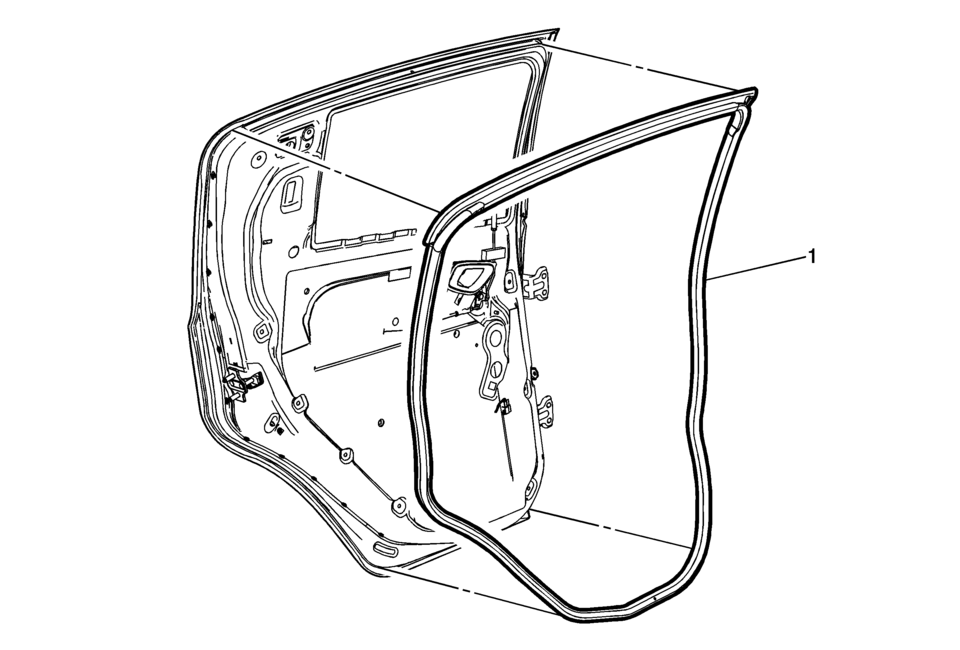

Callout	Component Name
1	Rear Side Door Weatherstrip Procedure Open the front side door to the fully open position. Remove the front side door check link bolt from the body side only . Refer to Front Side Door Check Link Replacement. Use a suitable tool, remove the push-in retainers from the corners of the door. Pull the weatherstrip out of the door retainer. Ensure that the weatherstrip is fully seated in the door frame retainer. Verify proper door operation.
