Chevrolet Sonic Repair Manual: Relay Replacement (Attached to Wire Harness)

Chevrolet Sonic Repair Manual / Electrical / Fuses Junctions and Relays / Relay Replacement (Attached to Wire Harness)

Removal Procedure

    Locate the relay. Refer to the Master Electrical Component List to locate
  1. Locate the relay. Refer to the Master Electrical Component List to locate the relay in the vehicle.
  2. Remove any fasteners which hold the relay in place.
  3. Remove any connector position assurance (CPA) devices or secondary locks.
  4. Note:

    Use care when removing a relay in a wiring harness when the relay is secured by fasteners or tape.

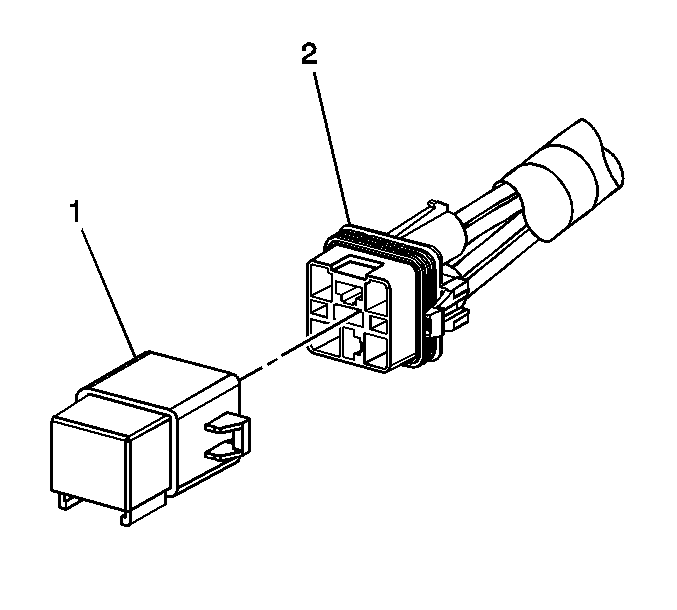

  5. Separate the relay (1) from the wire harness connector (2).
Installation Procedure

    Connect the relay (1) to the wire harness connector (2).
  1. Connect the relay (1) to the wire harness connector (2).
  2. Install any connector position assurance (CPA) devices or secondary locks.
  3. Install the relay using any fasteners or tape that originally held the relay in place.
