Callout |
Component Name |
|---|---|
|
1 |

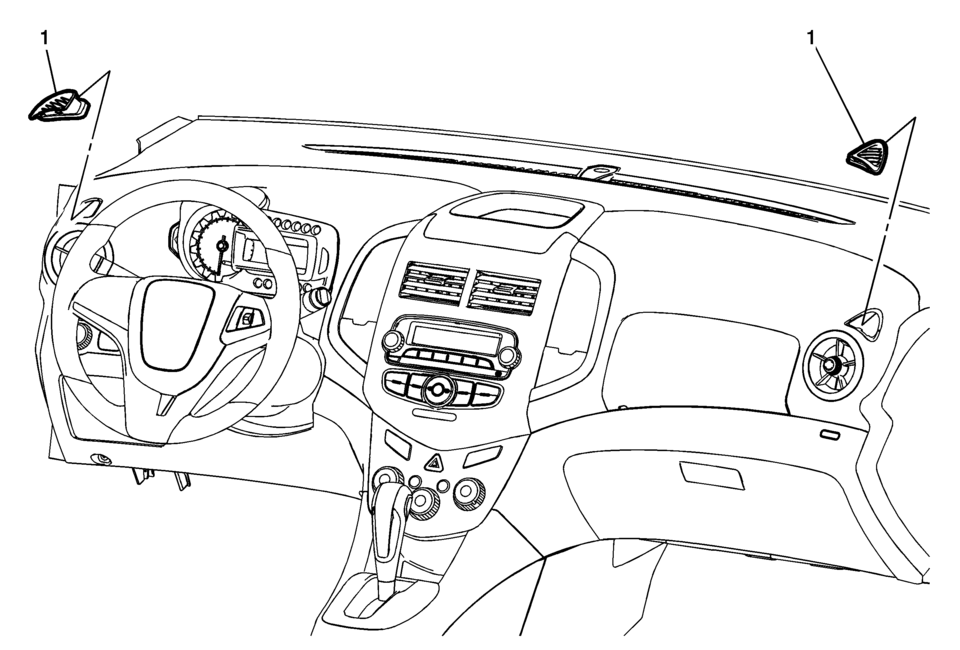

Side Window Defroster Outlet Grille (Qty:?€‰2) Procedure
Use a flat bladed plastic trim tool to aid in the removal of the grille assemblies from the instrument panel. |
Radiator Grille Opening Cover Replacement (Upper Grille Cover)Doing Your Own Service Work
Warning
It can be dangerous to work on your vehicle if you do not have the proper
knowledge, service manual, tools, or parts. Always follow owner manual procedures
and consult the service manual for your vehicle before doing any service work.
If doing some of your own service work, use the pro ...
Drive Belt Installation
Special Tools
EN-955 Locking Pins
EN-48488 Holding Wrench
For equivalent regional tools, refer to Special Tools.
Note: Ensure that the drive belt tensioner is held with EN-955?E
locking pin.
Install the drive belt.
Move the drive belt tensioner clockwise until EN- ...
Throttle Body Assembly Replacement
Removal Procedure
Disconnect the throttle body wiring harness connector.
Remove the charge air cooler outlet air hose from
the throttle body. Refer to Charge Air Cooler Outlet
Air Hose Replacement.
Remove the 4 throttle body fasteners (3).
Remo ...
