Chevrolet Sonic Repair Manual: Hood Hinge Replacement

Chevrolet Sonic Repair Manual / Body / Body Exterior / Panels / Hood Hinge Replacement



Hood Hinge Replacement

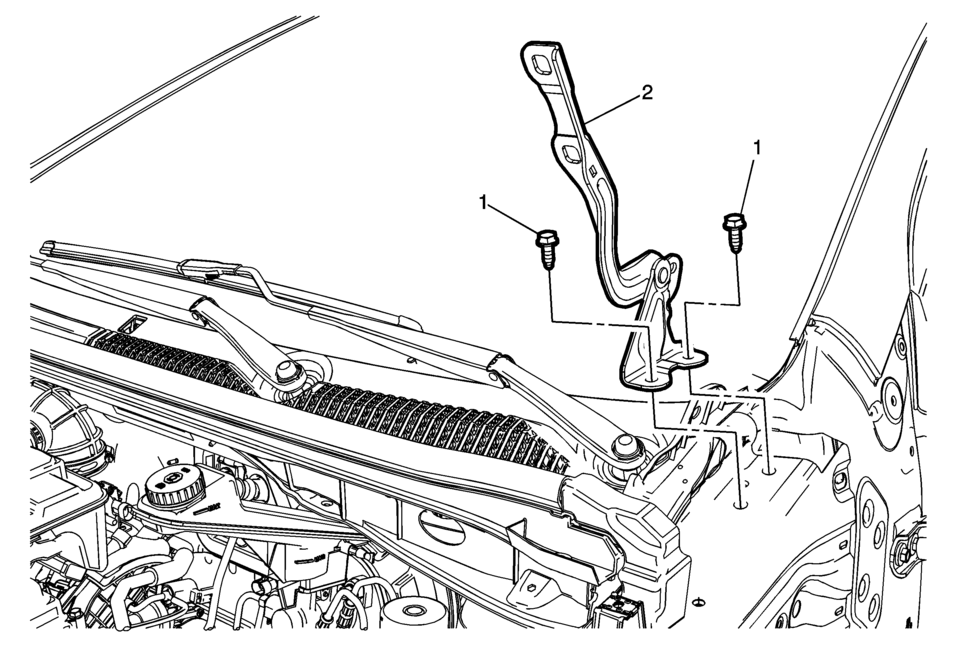

Callout

Component Name

Preliminary Procedures

  1. Remove the hood. Refer to Hood Replacement.
  2. Remove the front fender. Refer to Front Fender Replacement.

1

Hood Hinge Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


22?€‰Y (16?€‰lb?€‰ft)

2

Hood Hinge

Procedure

Adjust the hood and hinge if needed. Refer to Hood Adjustment.
