Chevrolet Sonic Repair Manual: Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T40/45)

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Automatic / General / Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal (6T40/45)



Transmission Fluid Pump, Front Differential Carrier Baffle, and Front Differential Ring Gear Removal

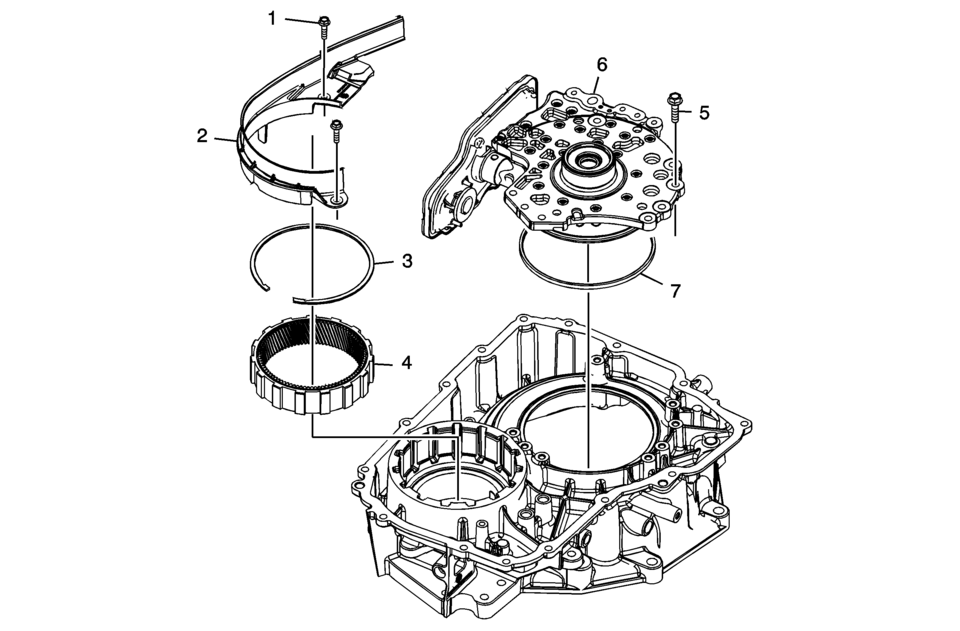

Callout

Component Name

1

Front Differential Carrier Baffle Bolts M6 x 25 (Qty: 2)

2

Front Differential Carrier Baffle

3

Front Differential Ring Gear Retainer

Note:

Note the direction of the taper to ensure proper installation.

4

Front Differential Ring Gear

5

Fluid Pump Bolts M8 x 33 (Qty: 8)

6

Fluid Pump Assembly

7

Torque Converter and Differential Housing Seal
