Chevrolet Sonic Repair Manual: Hood Hold-Open Rod Replacement
|

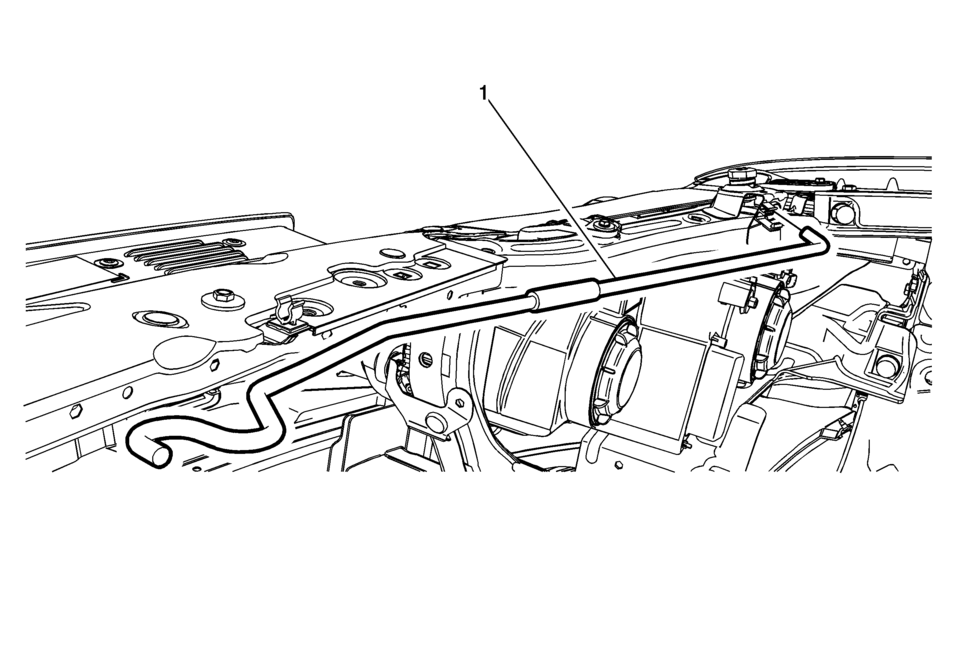

Callout |
Component Name |
|---|---|
|
1 |
Hood Hold-Open Rod Warning: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure
Open the retainer and remove the hood hold-open rod. |
Hood Hinge Replacement
Hood Hinge Replacement
Callout
Component Name
Preliminary Procedures
Remove the hood. Refer to Hood Replacement.
Remove the fr ...
Hood Insulator Replacement
Hood Insulator Replacement
Callout
Component Name
1
Hood Insulator Plastic Retainer (Qty:?€‰6)
2
...
