Chevrolet Sonic Repair Manual: Special Tools
|
Illustration |
Tool Number/ Description |
|---|---|
|
CH 28662 J 28662 Brake Pedal Effort Gauge |
|

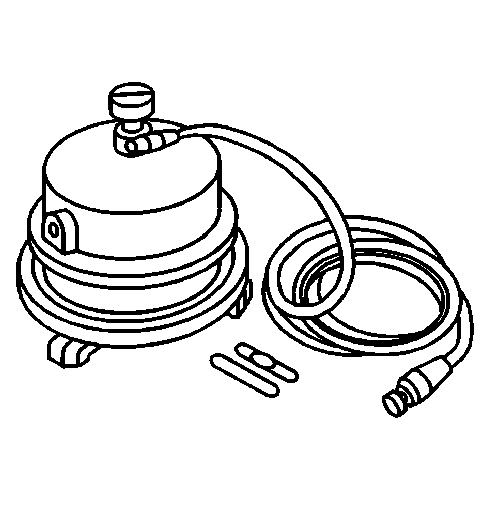

CH 29532 J 29532 Diaphragm Pressure Bleeder |
|

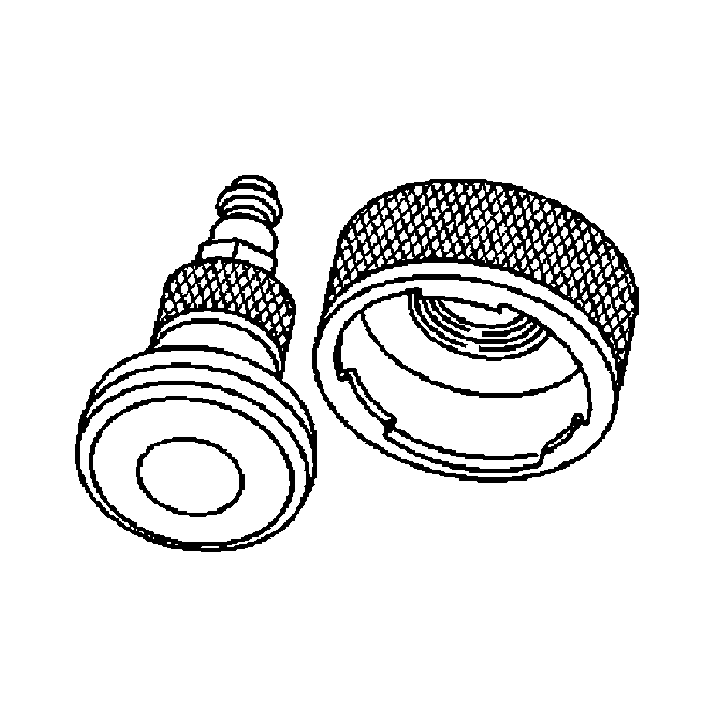

CH 35589-A J 35589-A Brake Pressure Bleeder Adapter |
|

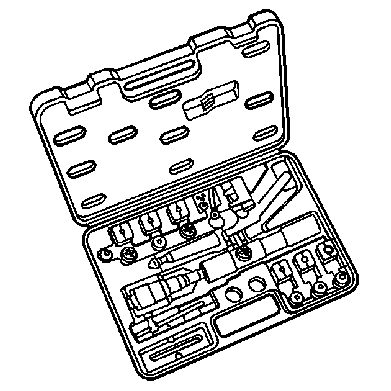

CH 45405 J 45405 Brake Pipe Flaring Kit |
Master Cylinder Replacement
Removal Procedure
Warning: Refer to Brake Fluid Irritant Warning.
Caution: Refer to Brake Fluid Effects on Paint and Electrical
Components Caution.
Place the ignit ...
