Chevrolet Sonic Repair Manual: Special Tools

Chevrolet Sonic Repair Manual / HVAC / Cooling / Special Tools

Illustration	Tool Number/ Description

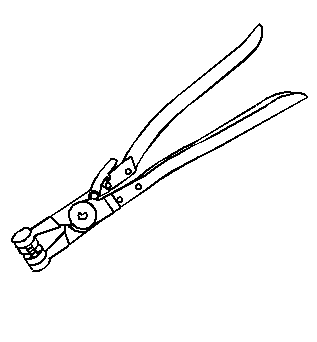

	BO-38185 J-38185 Hose Clamp Pliers

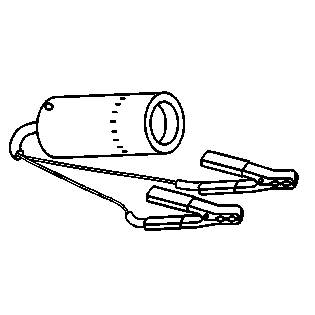

	BO-42220 J-42220 Universal 12V Leak Detection Lamp

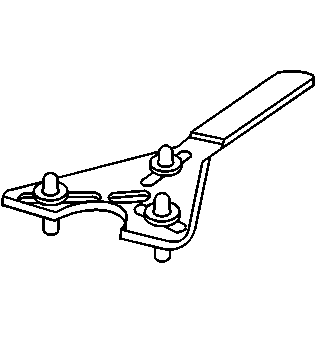

	CH-37872 GE-30206952 3-0206952 J-37872 DT-48280 Clutch Plate Holder

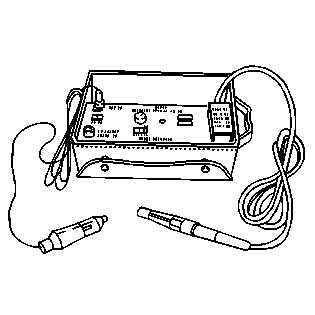

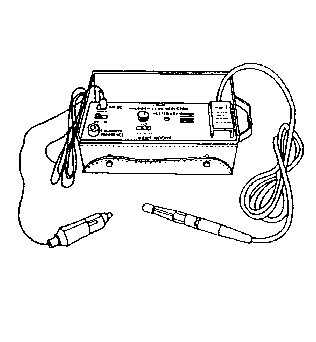

	GE-39400 J-39400 GE-50078 Electric Halogen Leak Detector
	GE-39400-A J-39400-A GE-50078 Halogen Leak Detector

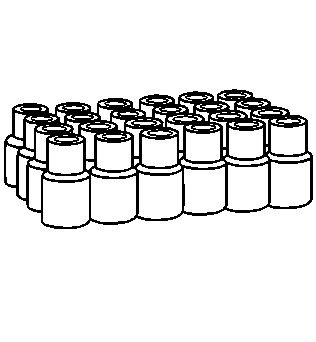

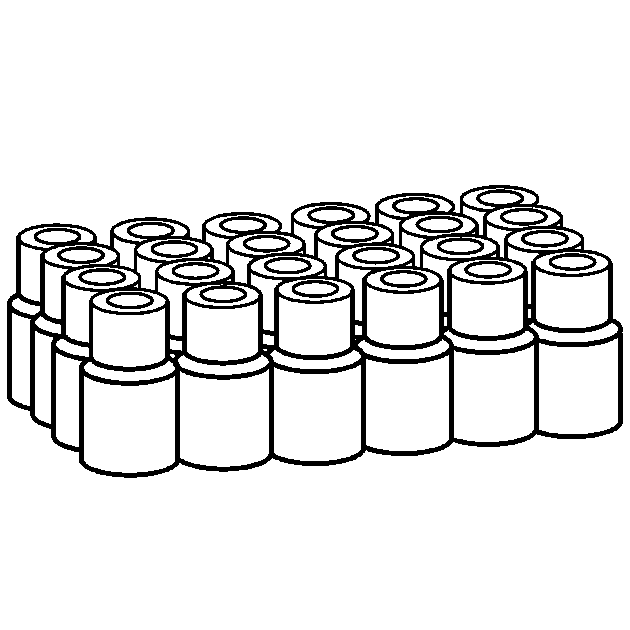

	GE-41447 J-41447 R-134A A/C Tracer Dye - Box of 24

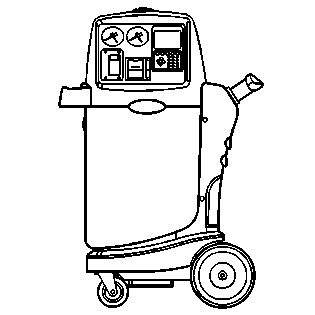

	GE-43600 GE-48800 J-43600 ACR 2000 Air Conditioning Service Center

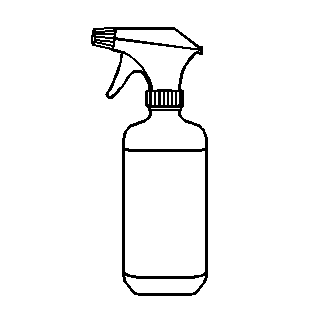

	GE-43872 J-43872 Florescent Dye Cleaner

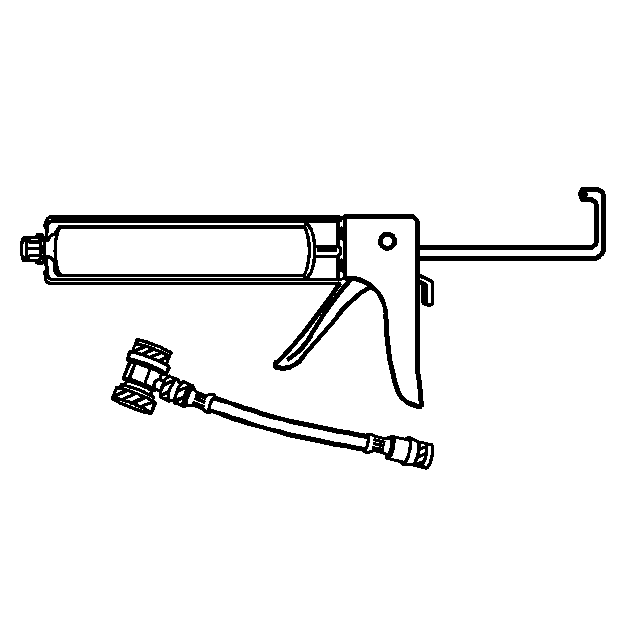

	GE-45037 J-45037 A/C Oil Injector

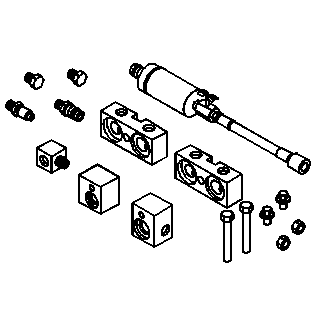

	GE-45268 J-45268 A/C Flushing Adapter Kit

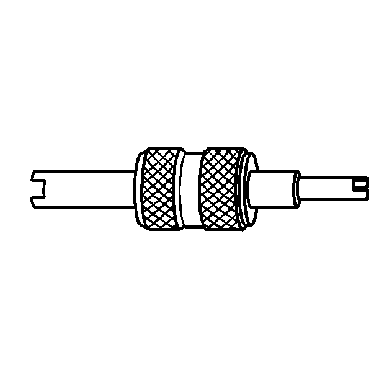

	GE-46246 J-46246 Valve Core Tool

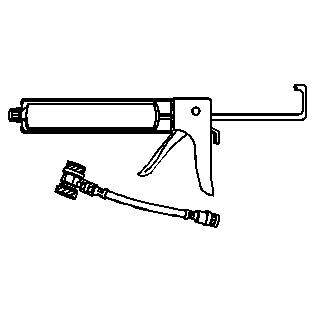

	GE-46297 J-46297 A/C Dye Injector Kit
	GE-46297-12 J-46297-12 Replacement Dye Cartridges
