Nissan Armada 2025-2026 Owner's Manual: Supplemental air bag warning labels
The Nissan Armada is equipped with clearly visible warning labels related to the supplemental front-impact air bag system. These labels are strategically placed within the vehicle to remind occupants of critical safety precautions.
SRS air bag

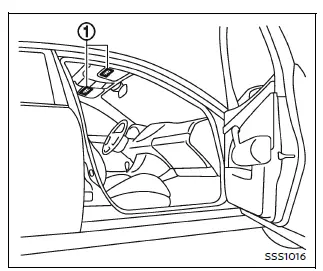

The warning labels 1 in the Nissan Armada are located on the sun visors, ensuring that drivers and passengers can easily see important safety information before and during travel.
WARNING
Never install a rear-facing child restraint in a seating position protected by a front air bag in the Nissan Armada. In the event of air bag deployment, this could result in severe injury or even death to the child.
Always follow all safety instructions regarding child restraints and air bag systems in the Nissan Armada to ensure maximum protection for all occupants.
Seat belts with pretensioners (front and second row outboard seats)
WARNING
In the Nissan Armada, seat belt pretensioners are single-use safety devices.
Once activated, they must be replaced as a complete unit together with the seat
belt retractor and buckle ...
Supplemental air bag warning light
In the Nissan Armada, the supplemental air bag warning light, identified by the
symbol
displayed in the instrument cluster, continuously monitors the integrity of the
air bag systems, pret ...
