Chevrolet Sonic Repair Manual: Throttle Body Heater Inlet Pipe Replacement (LUW)

Chevrolet Sonic Repair Manual / Powertrain / Engine / Engine Cooling / Information / Throttle Body Heater Inlet Pipe Replacement (LUW)



Throttle Body Heater Inlet Pipe Replacement

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling.

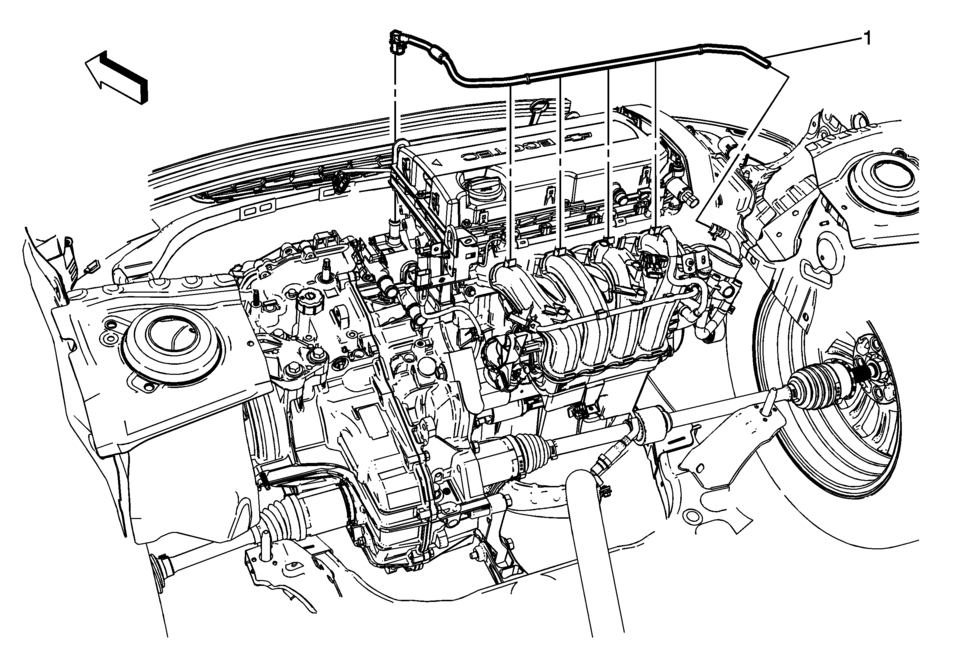

1

Throttle Body Heater Inlet Pipe

Procedure

  1. Disconnect throttle body heater inlet pipe from the thermostat housing.
  2. Unclip the throttle body heater inlet pipe from the top of the intake manifold.
  3. Remove the throttle body heater inlet pipe from the throttle body heater inlet hose.
