Chevrolet Sonic Repair Manual: Transmission Identification Information

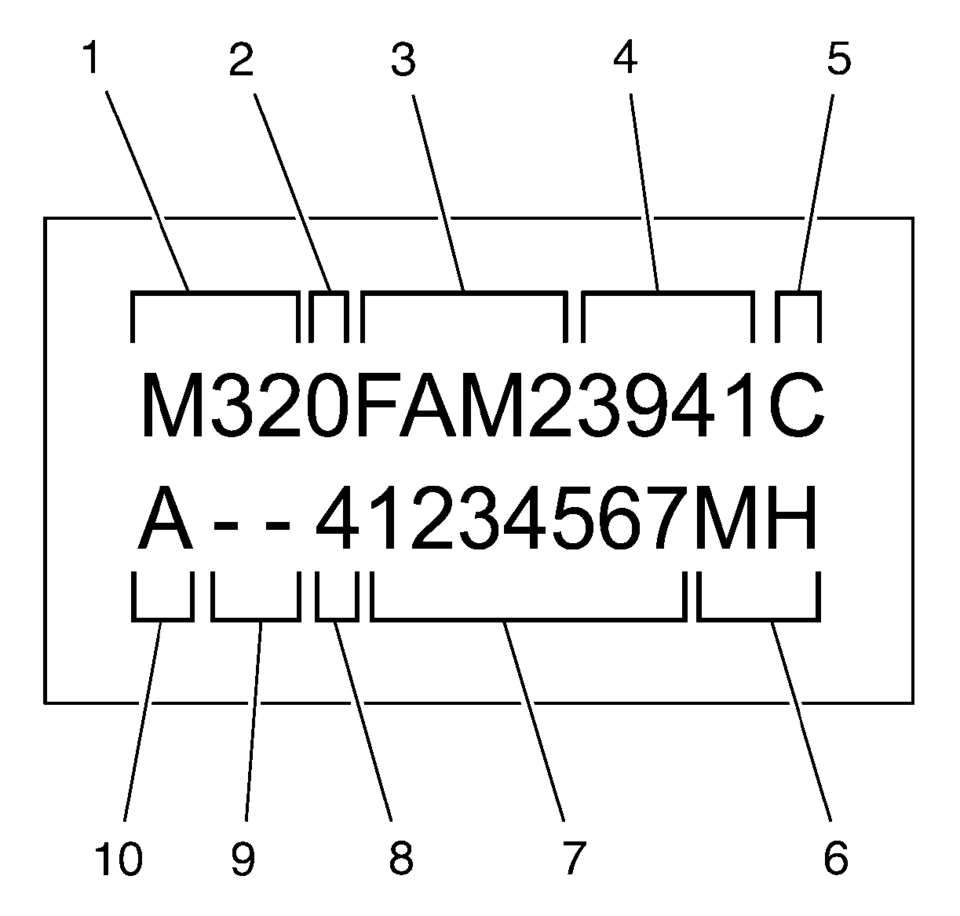

The code for the M32-6 transmission will be found on the back of the transmission housing, above the axle shaft. In addition, an Alphacode sticker will be placed on the cover of the differential.
- Transmission type (M32) (1)
- Design (2)
- Engine family (3)
- Output ratio (3.941) (4)
- Gear set (C) (5)
- Alpha Code (MH) (6)
- Serial number (7 digit) (7)
- Last digit of year (4 = 2004) (8)
- 2 blanks (9)
- Manufacturing plant (A = Aspern) (10)
