Sedan
Hatchback

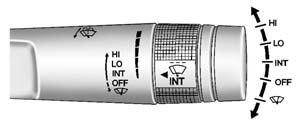

The windshield wiper/washer lever is on the right side of the steering column.
Move the lever to one of the following positions:
HI: Use for fast wipes.
LO: Use for slow wipes.

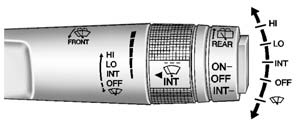

Hatchback Shown, Sedan Similar

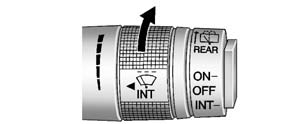

INT: Move the lever up to INT for intermittent wipes, then turn the
INT band up for more frequent wipes
or down for less frequent wipes.
OFF: Use to turn the wipers off.
: For a single wipe, briefly move
the wiper lever down. For several wipes, hold the wiper lever down.
: Pull the windshield wiper lever
toward you to spray windshield washer fluid and activate the wipers.
See Windshield Wiper/Washer. For vehicles with a rear window wiper/washer, see Rear Window Wiper/Washer.
