Instrument Panel Lower Intermediate Reinforcement Replacement

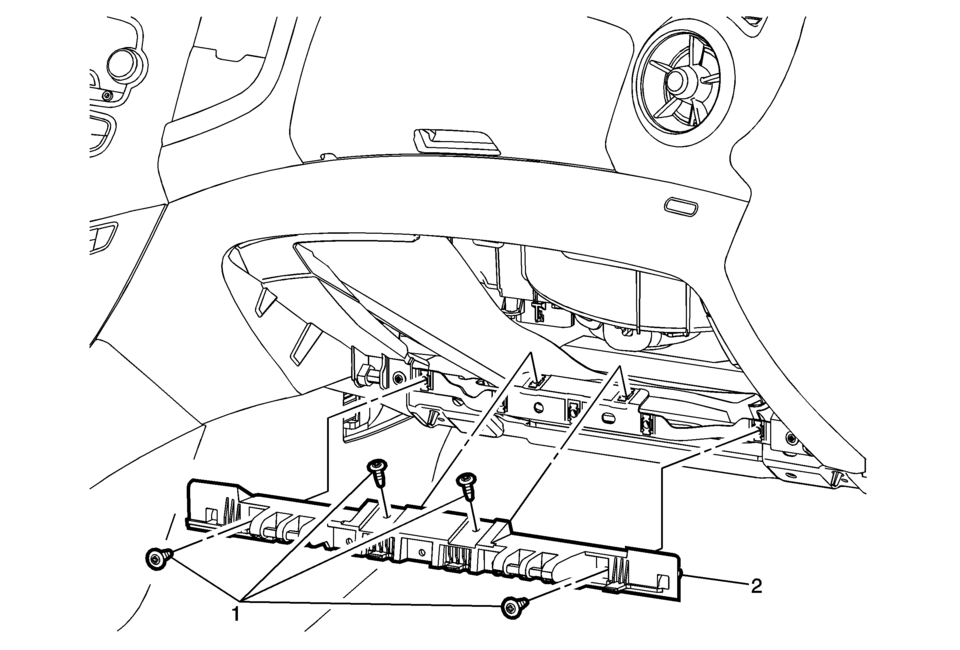

Callout

Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling.
  2. Remove the passenger inflatable restraint instrument panel lower module. Refer to Instrument Panel Lower Airbag Replacement - Passenger Side.

1

Instrument Panel Lower Reinforcement Fasteners (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

2

Instrument Panel Lower Intermediate Reinforcement

Instrument Panel Lower Compartment Replacement
