Chevrolet Sonic Repair Manual: Clutch Master Cylinder Reservoir Hose Replacement
- Removal Procedure
-

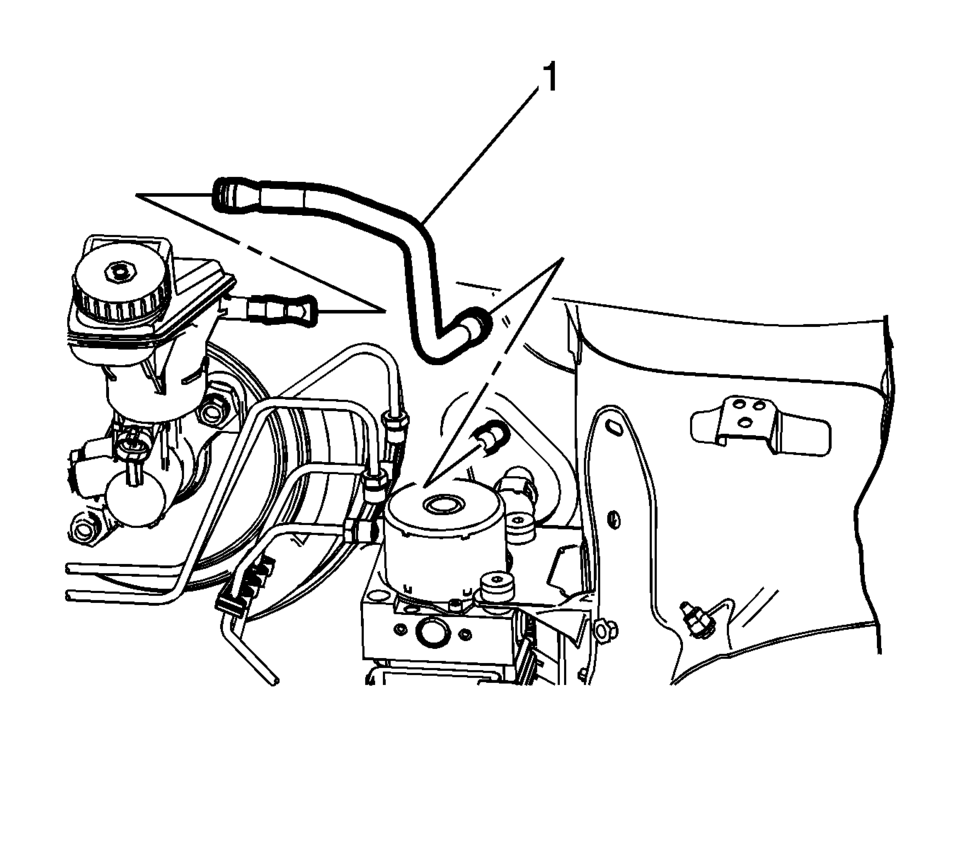

- Remove the clutch master cylinder reservoir hose (1) from the reservoir tank.
- Remove the clutch master cylinder reservoir hose from the clutch master cylinder.
Note:
Before disconnecting the reservoir tank hose, remove the clutch/brake fluid from the reservoir tank.
- Installation Procedure
-
- Install the clutch master cylinder reservoir hose (1) to the reservoir tank and the master cylinder.
- Bleed The hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding.
- Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.
