Chevrolet Sonic Repair Manual: Clutch Pedal Position Sensor Replacement

Chevrolet Sonic Repair Manual / Powertrain / Transmission/Transaxle / Manual / Clutch / Clutch Pedal Position Sensor Replacement

Removal Procedure

Remove the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.

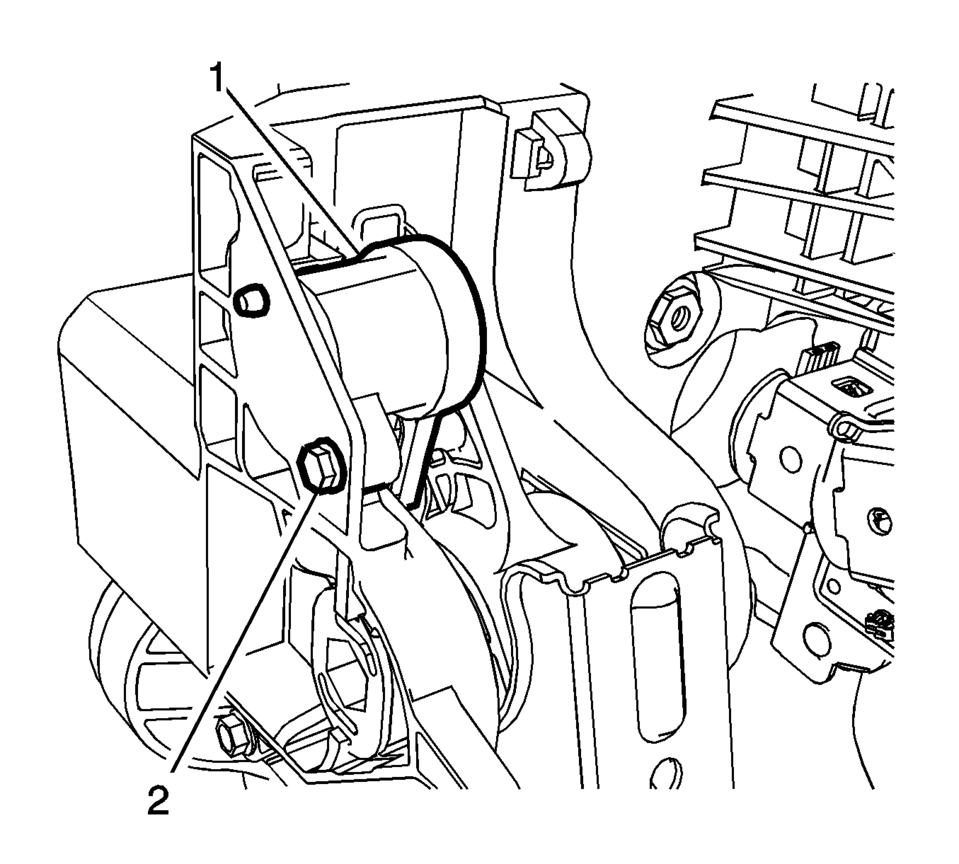

Remove the clutch pedal position sensor bolt (2).
Remove the clutch pedal position sensor (1).
Disconnect the clutch pedal position sensor wiring harness connector.

Installation Procedure

Connect the clutch pedal position sensor wiring harness connector.

Install the clutch pedal position sensor (1).

Caution:

Refer to Fastener Caution.

Install the clutch pedal position sensor bolt (2) and tighten to 3 Y (27 lb in)
.
Install the instrument panel lower trim pad cover. Refer to Instrument Panel Lower Trim Pad Cover Replacement.
