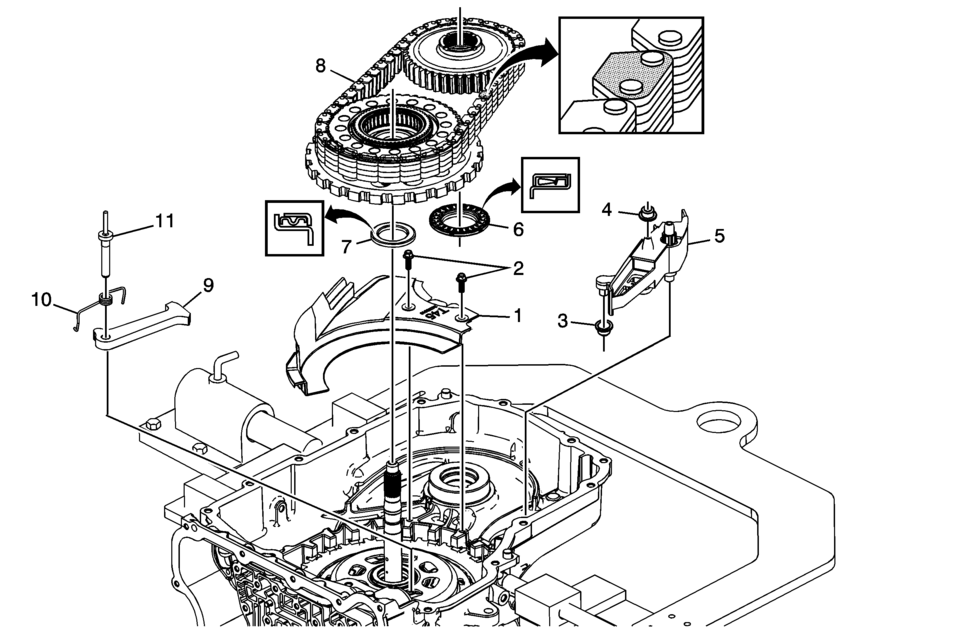

Drive and Driven Sprocket, Drive Link, and Park Pawl Installation

Callout

Component Name

1

Front Differential Carrier Baffle

2

Front Differential Carrier Baffle Bolt M6 x 16 (Qty: 2)

Caution:

Refer to Fastener Caution.

Tighten


12 Y (106 lb in)

3

Drive Link Lube Scoop Seal

4

Drive Link Lube Fluid Seal

5

Drive Link Lube Scoop

6

Driven Sprocket Bearing Assembly

7

Drive Sprocket Bearing Assembly

8

Driven Sprocket Assembly, Drive Sprocket Assembly and Drive Link

Note:

  • Install the drive link with the colored links and/or part number facing up.
  • The drive link, drive, and driven sprocket assemblies must be installed at the same time.
  • The ball bearing should spin freely and smoothly.
  • The driven sprocket ball bearing inner race has a slight interference fit with the case. Tap gently with the palm of a hand or a soft tip hammer to install.

9

Park Pawl

10

Park Pawl Spring

11

Park Pawl Shaft

Note:

Check to ensure that the park pawl operates freely and is not binding.
