Chevrolet Sonic Repair Manual: Engine Oil Cooler Assemble



    Caution:

    Refer to Fastener Caution.

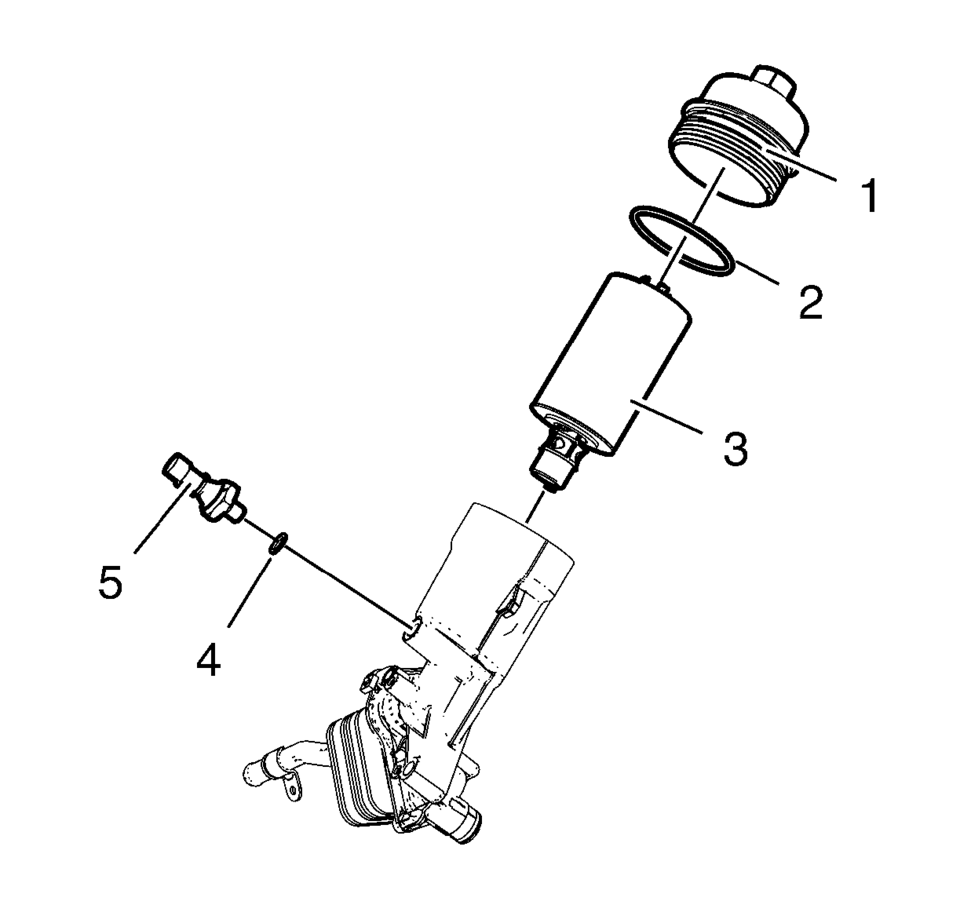

  1. Install the engine oil filter cap (1) along with a NEW seal ring (2) and a NEW oil filter element (3) and tighten to  25 Y (18 lb ft)

    .

  2. Install the engine oil pressure indicator switch (5) and NEW seal ring (4) and tighten to  20 Y (15 lb ft)

    .

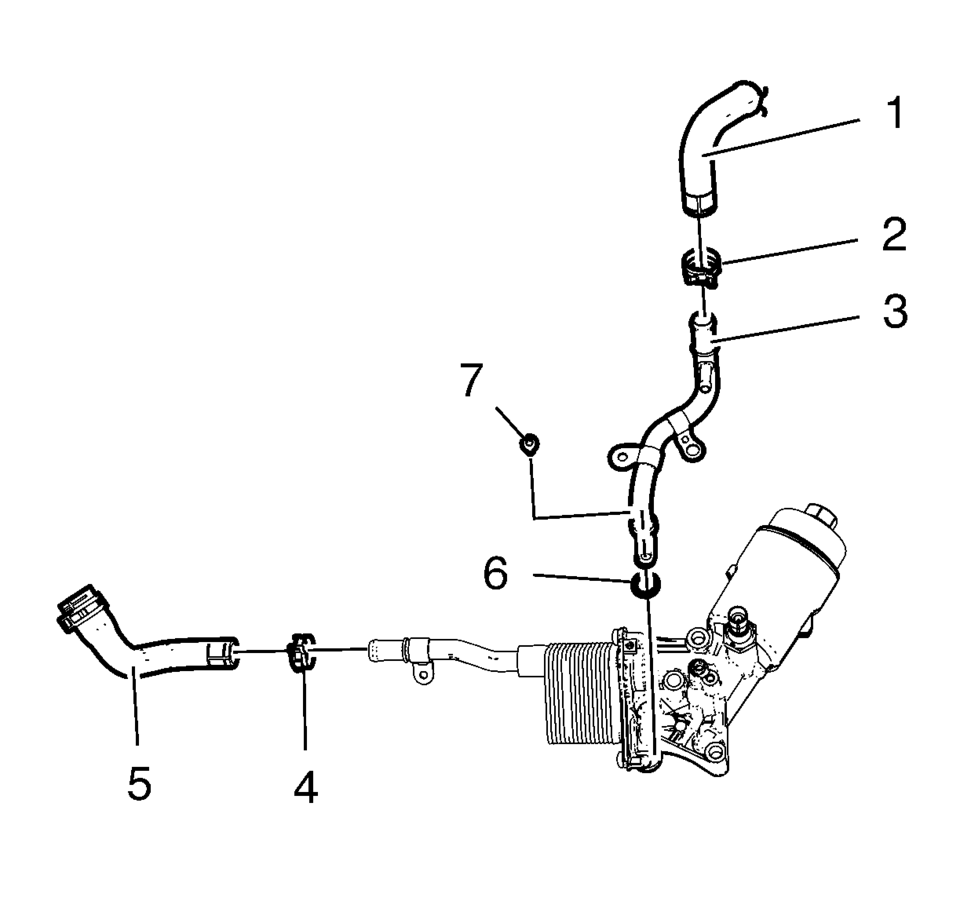

  3. Install the oil cooler coolant outlet hose (5)
  4. Install the oil cooler coolant outlet hose clamp (4).
  5. Install the oil cooler coolant inlet pipe (3) and a NEW seal ring (6).
  6. Install the oil cooler coolant inlet pipe bolt (7) and tighten to  10 Y (89 lb in)

    .

  7. Install the oil cooler coolant inlet hose (1).
  8. Install oil cooler coolant inlet hose clamp (2).
