Callout |
Component Name |
---|---|
Preliminary Procedure
|
|
1 |

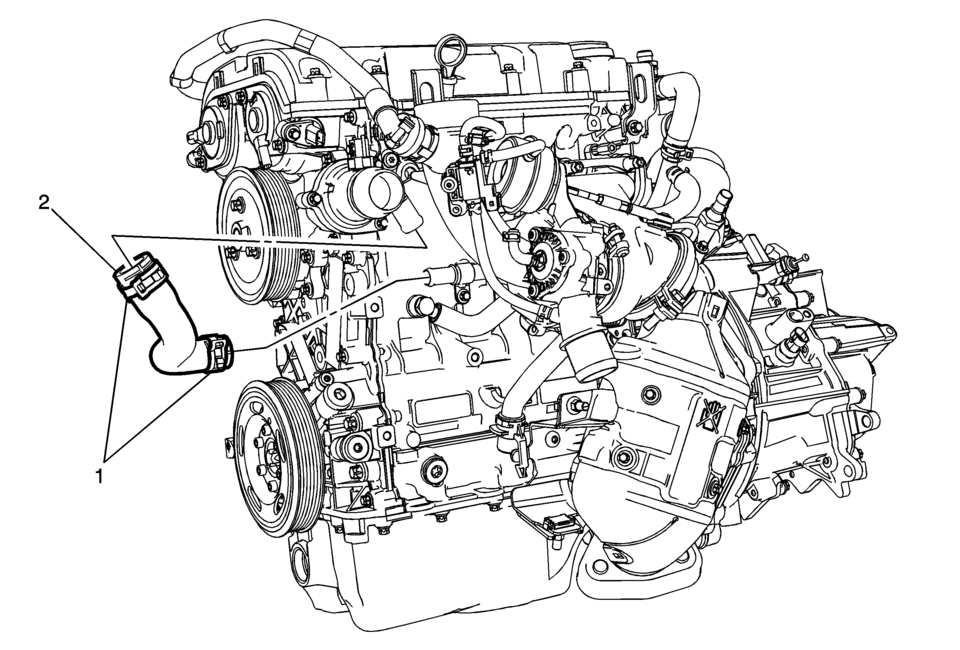

Engine Oil Cooler Outlet Hose Clamps (Qty: 2) |
2 |
Engine Oil Cooler Outlet Hose |
Instrument Panel Lower Trim Pad Cover Replacement (With AAL)
Instrument Panel Lower Trim Pad Cover Replacement
Callout
Component Name
Preliminary Procedure
Disable the SIR system. Refer to SIR Disabling and Enabling.
1
Instrument Panel Lower Trim Pad Fastener ...
Drivetrain and Front Suspension Frame Skid Plate Replacement
Removal Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
Remove the mounting bolts (1) for the front suspension frame skid plate.
Remove the front suspension frame skid plate (2).
Installation Procedure ...
Automatic Transmission Flex Plate Removal
Special Tools
EN-652 Automatic Transmission Flex Plate Holder
For equivalent regional tools, refer to Special Tools.
Install the EN-652 holder (1) to hold the automatic
transmission flex plate (2).
Loosen the 6 automatic transmission flex plate bolts.
Re ...
