Front Bumper Impact Bar Lower Bracket Replacement

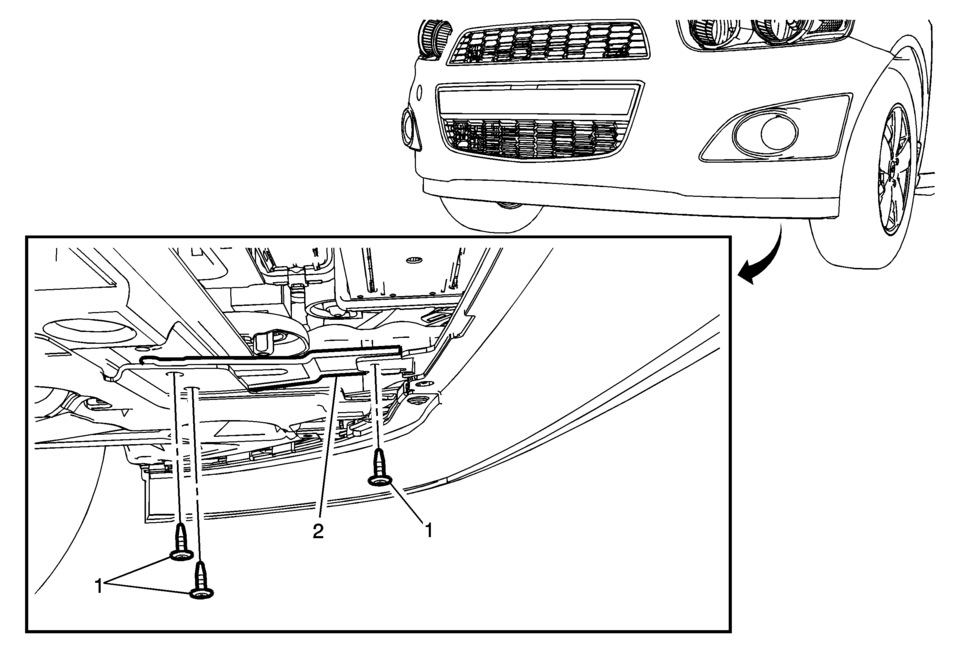

Callout

Component Name

Preliminary Procedure

Remove the front bumper opening cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement.

1

Front Bumper Impact Bar Lower Bracket Screw (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Tighten


8?€‰Y (71?€‰lb?€‰in)

2

Front Bumper Impact Bar Lower Bracket

Procedure

Lift up the front of the lower bracket enough to release the front guide tab from the front fascia.
