Chevrolet Sonic Owner's Manual: Front Seats
The front seats have adjustable head restraints in the outboard seating positions.

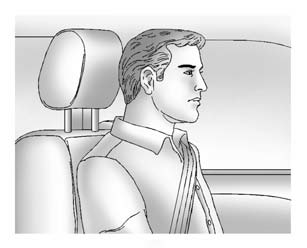

Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant's head. This position reduces the chances of a neck injury in a crash.

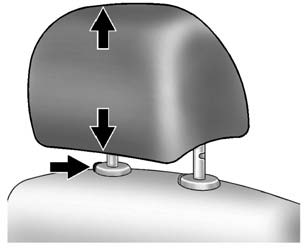

The height of the head restraint can be adjusted. Pull the head restraint up to raise it. Try to move the head restraint to make sure that it is locked in place.
To lower the head restraint, press the button, located on the top of the seatback, and push the head restraint down. Try to move the head restraint after the button is released to make sure that it is locked in place.
The front seat outboard head restraints are not designed to be removed.
Head Restraints
Warning
With head restraints that are not installed and adjusted properly, there is
a greater chance that occupants will suffer a neck/ spinal injury in a crash. Do
not drive until the head restr ...
Rear Seats
The vehicle's rear seats have adjustable head restraints in the outboard seating
positions.
The height of the head restraint can be adjusted. Pull the head restraint up
to raise it. Try to ...
