Chevrolet Sonic Repair Manual: Front Wheel Drive Shaft Seal Replacement - Left Side

Chevrolet Sonic Repair Manual / Chassis / Wheels/Tires / Wheels / Front Wheel Drive Shaft Seal Replacement - Left Side



Front Wheel Drive Shaft Seal Replacement - Left Side

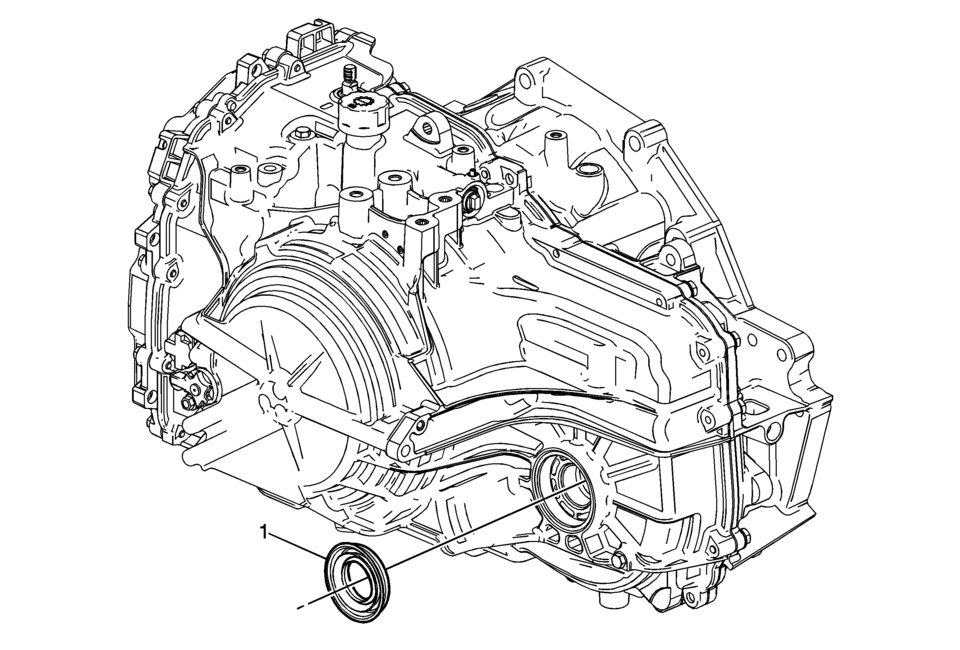

Callout

Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
  2. Remove the left wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement.

1

Left Front Wheel Drive Shaft Oil Seal

Procedure

  1. For seal removal use GE-6125-1B slide hammer with DT-23129 universal seal remover .
  2. For seal installation use GE-8092 driver handle with DT-47790 seal installer .
Special Tools

  • DT-23129 Universal Seal Remover
  • DT-47790 Seal Installer
  • GE-6125–1B Slide Hammer
  • GE-8092 Driver Handle

For equivalent regional tools, refer to Special Tools.
