Callout |
Component Name |
---|---|
1 |

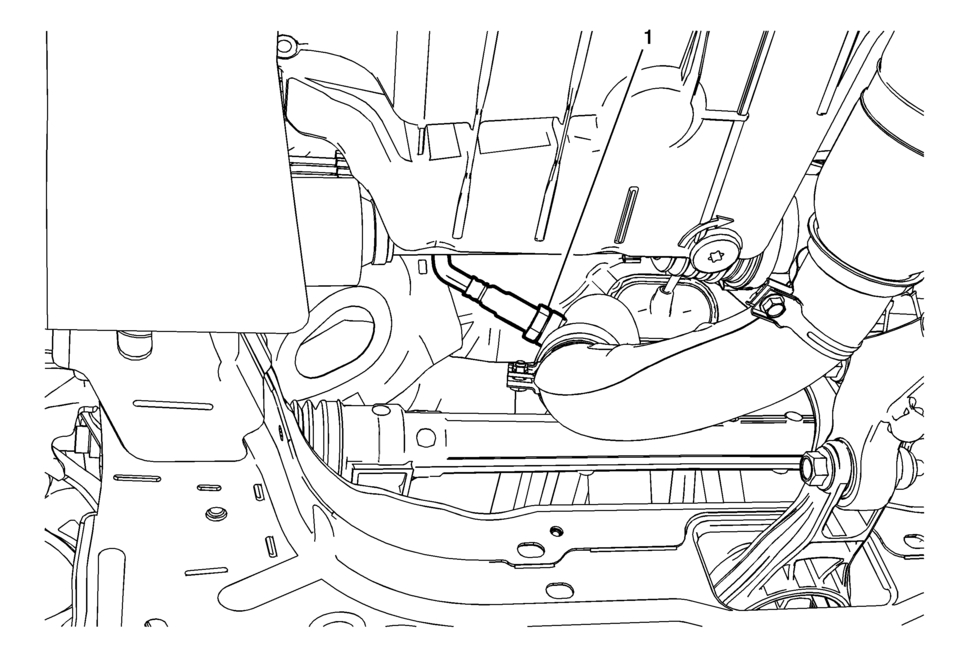

Heated Oxygen Sensor 2 Warning: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. Caution: Refer to Fastener Caution.
42 Y (31 lb ft) Special Tools
EN-6179 Heated Oxygen Sensor Remover / Installer For equivalent regional tools. refer to Special Tools. |
Mode Control Cam Replacement
\/
Mode Control Cam Replacement
Callout
Component Name
Preliminary Procedures
Remove the heater and air conditioning control. . Refer to Heater
and Air Conditioning Control Replacement
Remove the instrument panel lower tri ...
Engine Oil Cooler Removal
Remove the oil cooler coolant outlet hose clamp (1).
Remove the oil cooler coolant outlet hose (2) from engine coolant thermostat
housing.
Remove the oil cooler coolant inlet hose clamp (3).
Remove the oil cooler coolant inlet hose (4) from water outlet. ...
Control Valve Body Assembly Assemble (Gen 2)
Control Valve Body Assembly Assemble
Callout
Component Name
1
Valve Body Ball Check Valve (Qty: 6)
2
Valve Channel Plate
3
Control Valve Body Bolt ...
