Hood Rear Weatherstrip Replacement

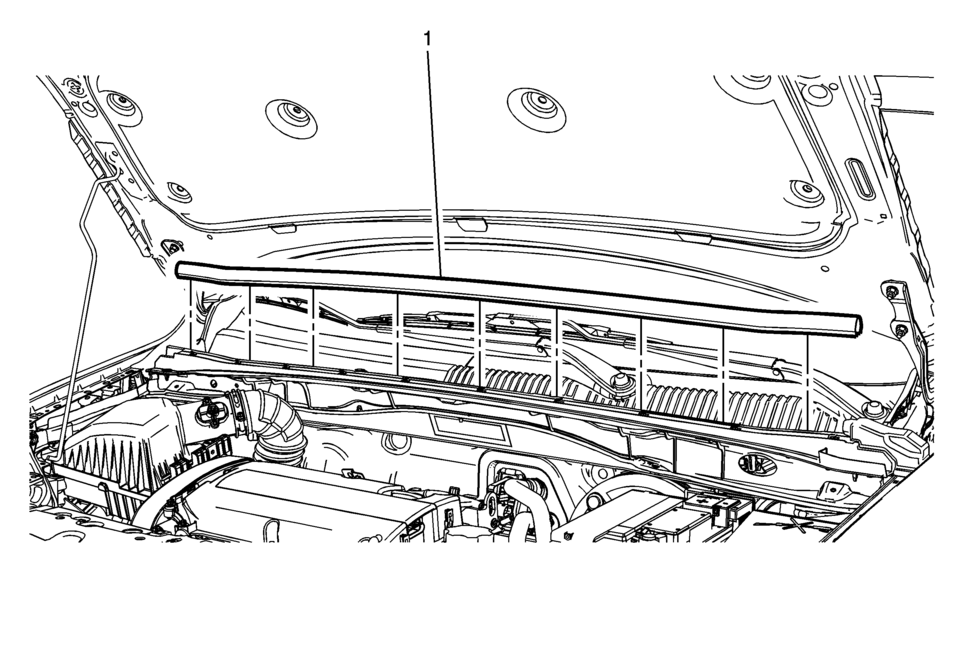

Callout

Component Name

1

Hood Rear Weatherstrip

Procedure

The hood rear weatherstrip is held in place with 10?€‰plastic retainers that are part of the air inlet grille. Carefully pull the weatherstrip to the right/left to release from the retainers on the air inlet grille.
