Knock Sensor Replacement

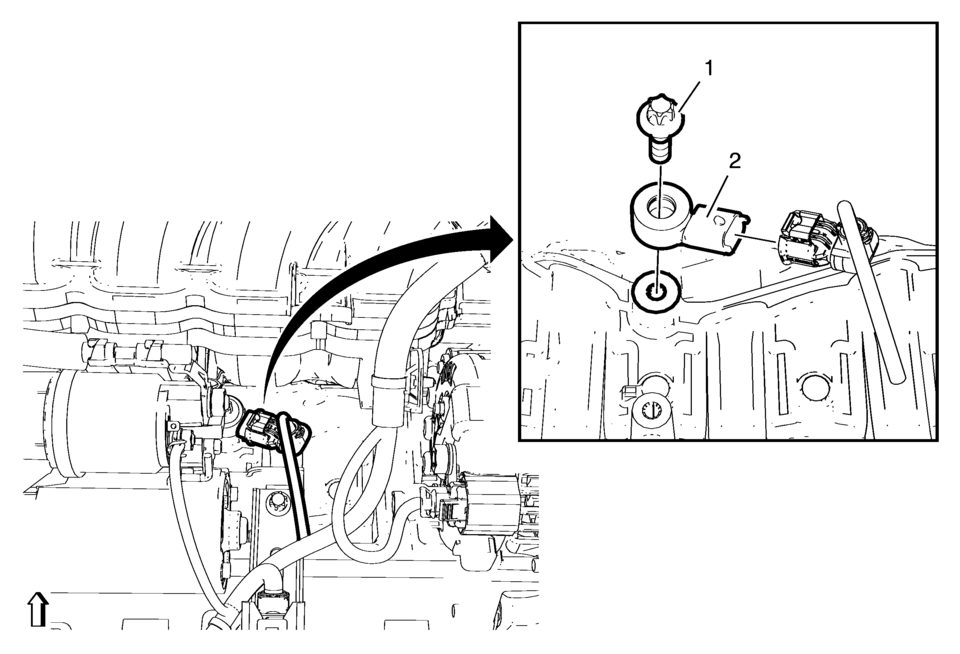

Callout	Component Name
Preliminary Procedures Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
1	Knock Sensor Bolt Caution: Refer to Fastener Caution. Procedure Disconnect the electrical connector. DO NOT mistake the knock sensor electrical connector with the generator electrical connector. Tighten 25 Y (18 lb ft)
2	Knock Sensor
