Chevrolet Sonic Repair Manual: Range Selector Lever Cable Bracket Replacement
- Removal Procedure
-
- Set the park brake and chock the wheels.

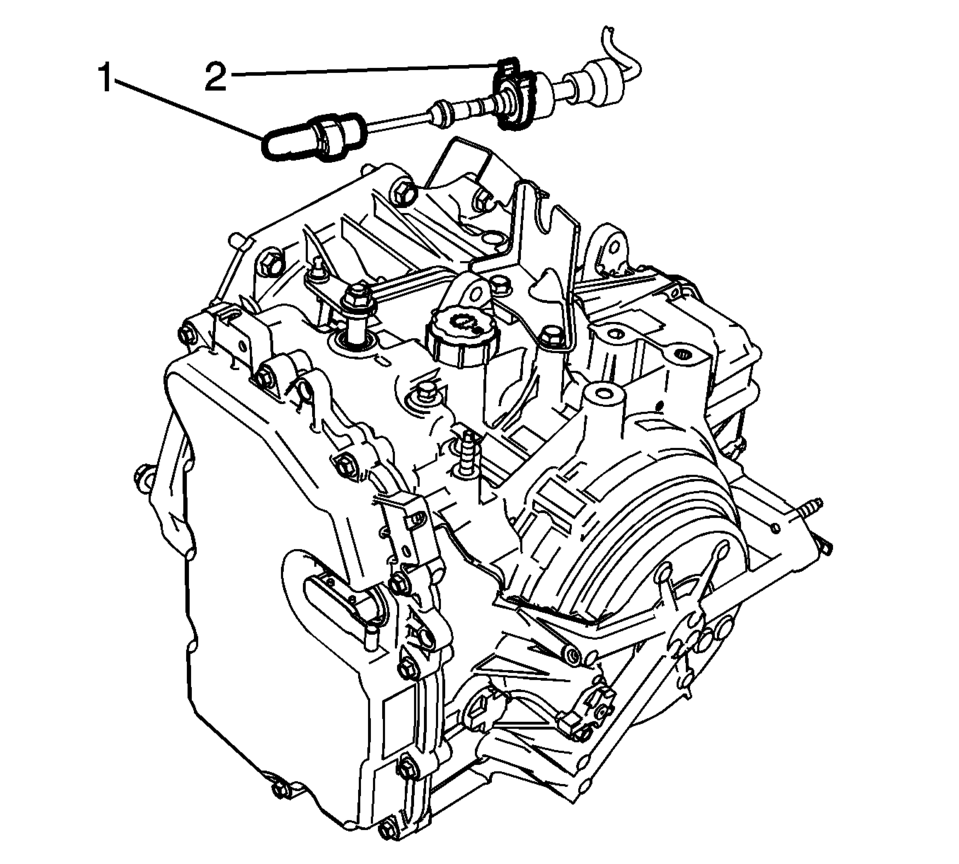

- Disconnect the range selector cable end (1) from the range selector lever.
- Disconnect the range selector cable (2) from the range selector cable bracket.

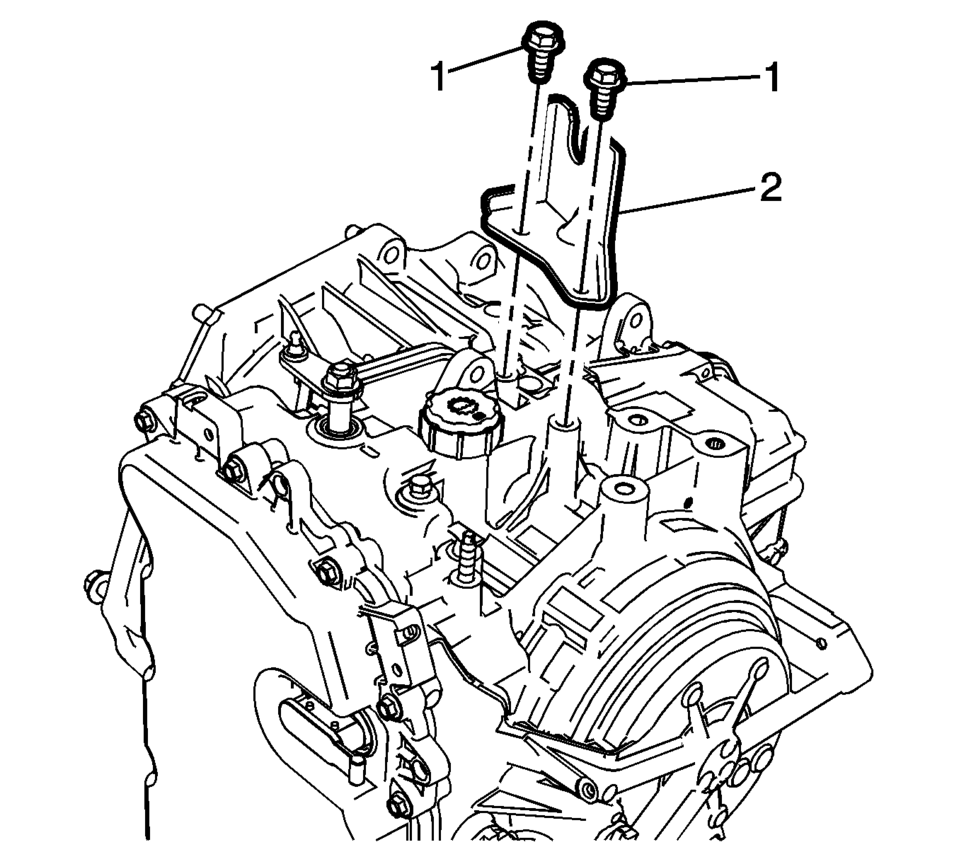

- Remove the transmission range selector cable bracket bolts (1).
- Remove the transmission range selector cable bracket (2).
- Installation Procedure
-
- Install the transmission range selector cable bracket (2).
- Install the transmission range selector cable bracket
bolts (1) and tighten to 22 Y (16 lb ft)
.
- Connect the range selector cable (2) to the range selector cable bracket.
- Connect the range selector cable end (1) to the range selector lever.
- Check the range selector cable adjustment. Refer to Range Selector Lever Cable Adjustment.
Caution:
Refer to Fastener Caution.
Range Selector Lever Cable Adjustment
Note: Adjust the automatic transmission range selector cable while
the transmission and the gear selector are in the Park position only. Failure
to do so may cause mis-adjustment.
...
Range Selector Lever Cable Replacement
Removal Procedure
Set the park brake and chock the wheels.
Disconnect the transmission range selector lever cable
terminal (1) from the transmission manual shift leve ...
