Rear Compartment Lid Replacement

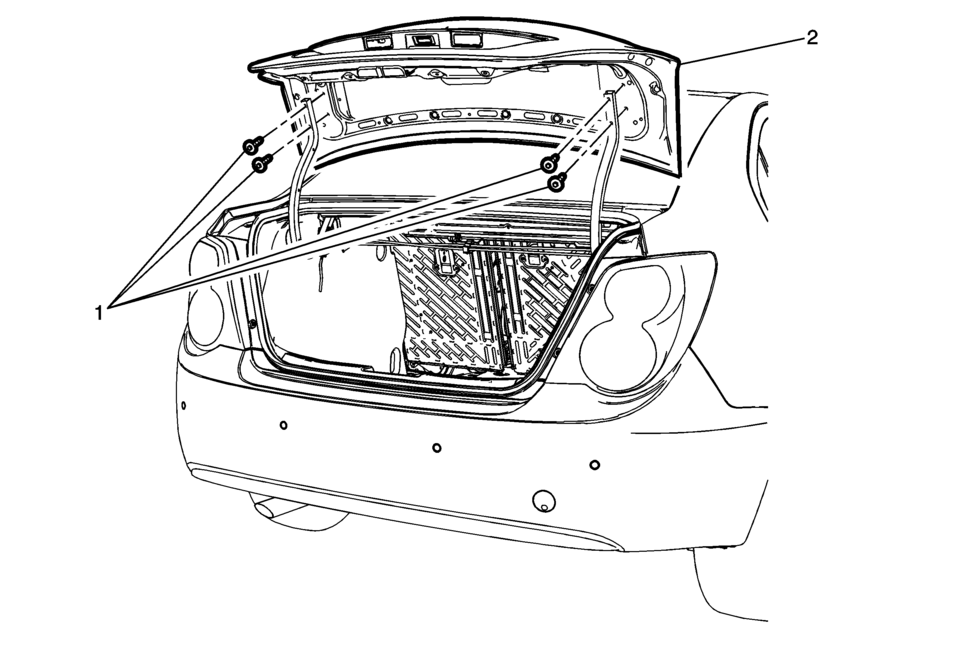

Callout

Component Name

Preliminary Procedure

Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement.

1

Rear Compartment Lid Bolt (Qty:?€‰4)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰ft)

2

Rear Compartment Lid

Procedure

  1. Disconnect the electrical connector.
  2. Adjust the rear compartment lid as needed. Refer to Rear Compartment Lid Adjustment.
  3. Transfer components as necessary.
