Rear Compartment Lid Rear Hinge Replacement

Callout

Component Name

Preliminary Procedures

  1. Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement.
  2. Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement.
  3. Disconnect the rear compartment lid hinge torque rods. Refer to Rear Compartment Lid Hinge Torque Rod Replacement.

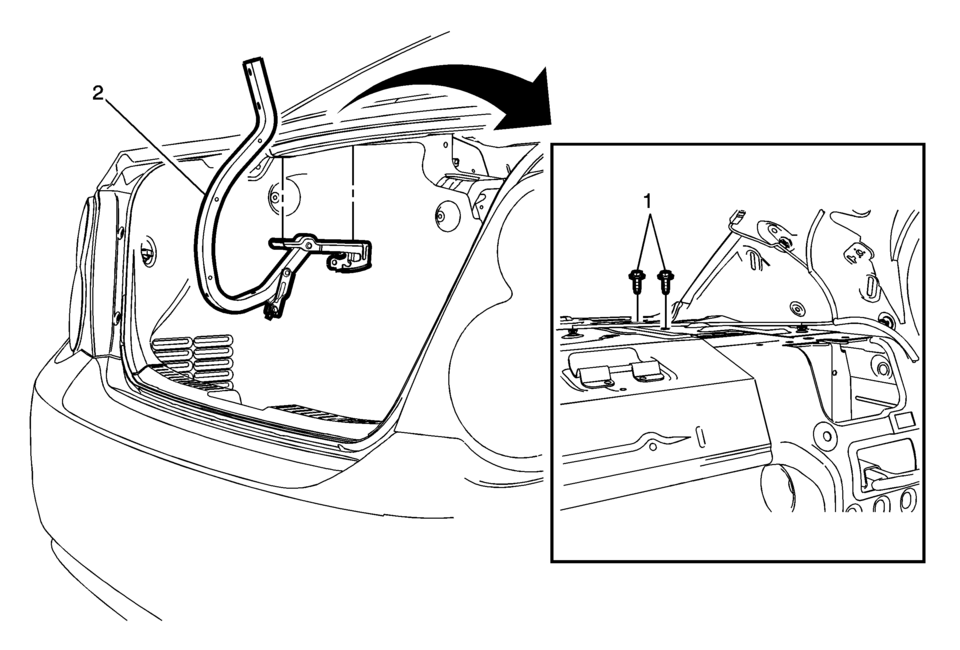

1

Rear Compartment Lid Rear Hinge Bolt (Qty:?€‰2)

Caution:

Refer to Fastener Caution.

Tighten


9?€‰Y (80?€‰lb?€‰in)

2

Rear Compartment Lid Rear Hinge

Procedures

  1. Transfer parts as needed.
  2. Adjust the rear compartment lid if needed. Refer to Rear Compartment Lid Adjustment.
