Illustration |
Tool Number/Description |
---|---|
![]() |
EL 38758 EL 50074 J 38758 Parasitic Draw Test Switch |
![]() ![]() |

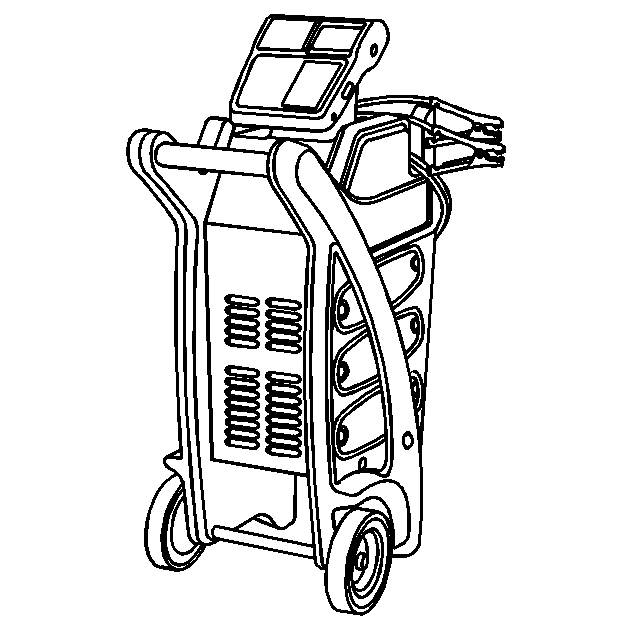

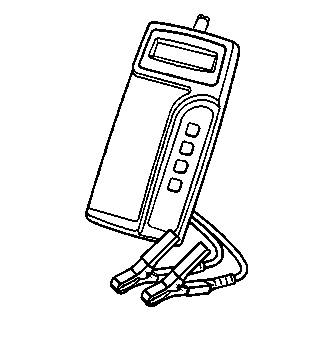

EL 50313 EL 42000 EL 50076 J 42000 Battery Tester |
![]() |

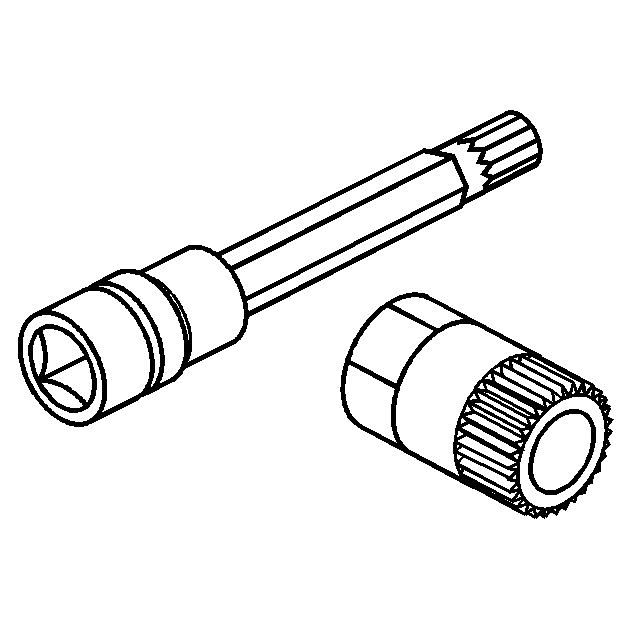

EN-6372 KM-6372 Counterhold |
Air Inlet Grille Panel Replacement
Air Inlet Grille Panel Replacement
Callout
Component Name
Preliminary Procedure
Remove both wiper arm assemblies. Refer to Windshield Wiper Arm
Replacement.
Remove both outer hood rear seals. Refer to Hood Rear Seal Repla ...
Valve Lifter Replacement
Special Tools
EN-845 Suction Device
For equivalent regional tools, refer to Special Tools.
Removal Procedure
Remove the camshaft. Refer to Camshaft Replacement.
Note: Mark the assignments.
Remove the valve lifter (1) use the EN-845 suction device ...
Locations of the sensors and cameras
Fig. 98 Front area: sensors and cameras
Fig. 99 Rear area: sensors and cameras
Front area
Depending on the vehicle equipment, the following
sensors and cameras may be installed:
Laser scanner in the front of the radiator grille
Camera behind the windshield
Peripheral cameras on the exterio ...
