Chevrolet Sonic Repair Manual: Special Tools

Illustration

Tool Number/Description


CH 9127-E

SA 9127-E

Fuel Pressure/Flow Adapter


CH 9182-E

SA 9182-E

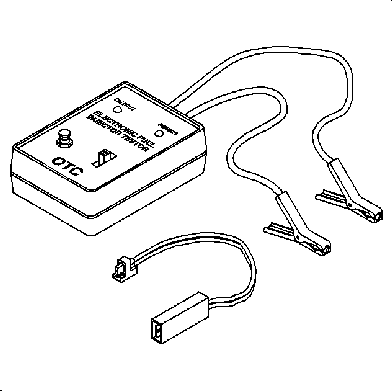

Electronic Fuel Injector Tester


CH 44175

J 44175

Fuel Composition Tester


CH 45004

J 45004

Fuel Tank Drain Hose


CH 48027

Digital Pressure Gauge


CH 48096

EVAP Service Access Port Tool


EL 43244

J 43244

DW 540-010

Relay Puller Pliers


EN 6009

KM 6009

83 96-335

Remover and Installer Ignition Coil


EN 6015

KM 6015

Closure Plugs


EN 6363

KM 6363

Spark Plug Remover/Installer


EN 23738-A

J 23738-A

Mityvac


EL 26792

J 26792

HEI Spark Tester


EN 34730-91

KM J-34730

Via Testing Port


EL 35616-E

J 35616-E

GM-Approved Terminal Test Kit includes J 35616-200 Test Light ?Probe Kit


EN 36012-A

J 36012-A

Ignition System Diagnosis Harness


EN 41413-SPT

J 41413-SPT

High Intensity White Light


EN 41413-VLV

J 41413-VLV

EVAP Service Port Vent Fitting


EN 41313-100

J 41413-100

EVAP Pressure and Purge Station


EN 41413-200

J 41413-200

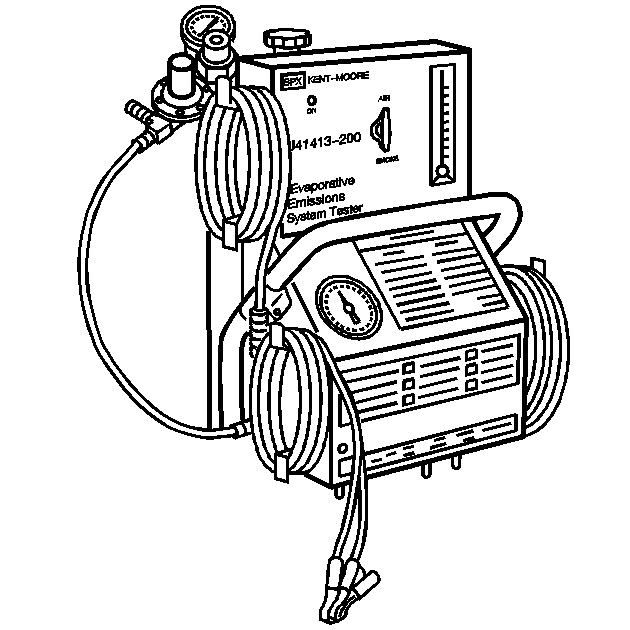

Evaporative Emissions System Tester


EN 41413-300

J 41413-300

EVAP Cap and Plug Kit


EN 41413-311

J 41413-311

EVAP Plug


EN 43936

J 43936

Fuel Pressure Adapter Cap


EN 43937

J 43937

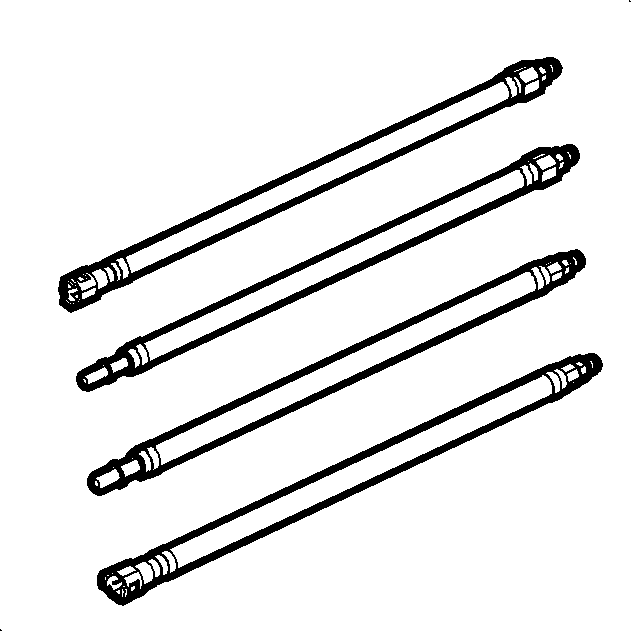

Fuel Pressure Adapter Lines


EN 48259

KM 6179

Heated Oxygen Sensor Remover/Installer


EN 48279

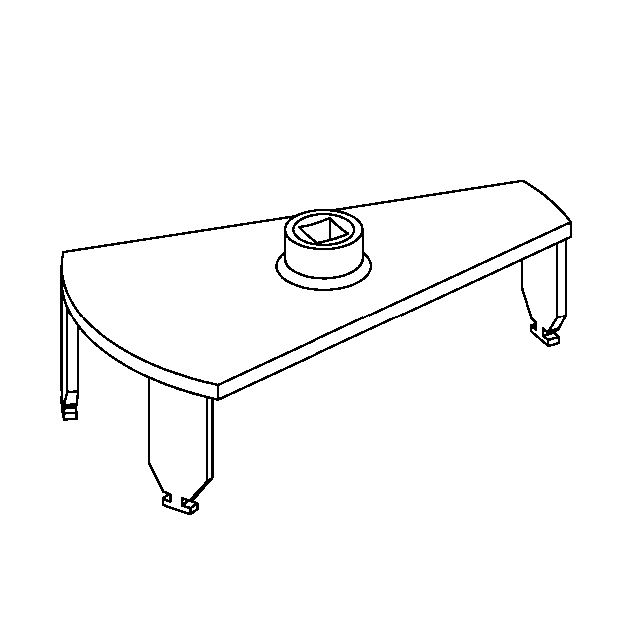

Main Fuel Pump Locking Ring Remover/Installer


GE 41415-30

Fuel Tank Cap Adapter

Spark Plug Replacement
Spark Plug Replacement Callout Component Name Preliminary Procedure Open the hood. Remove the engine sight shield. Remove t ...

Special Tools (Diagnostic Tools)
Illustration Tool Number/Description CH-34730-2C J-34730-2C Injector Test Lamp CH-38641-B ...
