Nissan Armada 2025-2026 Owner's Manual: Top tether anchor
2nd row captain's seat
2nd row bench seat
3rd row seat
Basic information
The Nissan Armada is equipped with dedicated top tether anchor points designed to enhance child restraint stability and safety. When a child restraint system includes a top tether strap, it must always be securely attached to the designated anchor point in the Nissan Armada to reduce forward movement of the seat during sudden stops or collisions.
WARNING
- The child restraint anchor points in the Nissan Armada are engineered
exclusively for use with properly installed child restraint systems.
Never use these anchor points for adult seat belts, cargo straps, or other equipment, as this may damage the anchors and compromise safety. A damaged anchor may result in improper installation and increase the risk of serious injury or death in an accident.
- Always ensure that cargo in the Nissan Armada is properly secured and
does not come into contact with the top tether strap.
Unsecured cargo or interference with the tether strap may damage it during a collision, significantly reducing its effectiveness and increasing the risk of injury.
Top tether anchor point locations
The Nissan Armada provides clearly marked tether anchor locations in the following seating positions:
- 2nd row bench seat (if equipped), located on the seatback.

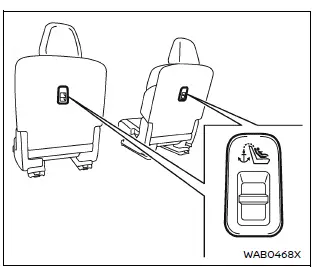

- 2nd row captain's seats (if equipped), located on the seatback.

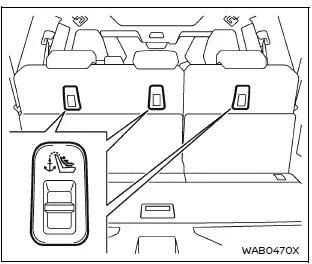

- 3rd row seats, located on the seatback.
If you have any questions regarding installation of a child restraint with a top tether strap in the Nissan Armada, it is recommended to consult an authorized NISSAN dealer for assistance.
Lower Anchors and Tethers for CHildren System (LATCH)
LATCH system lower anchor locations - models with 2nd row captain's seats
LATCH system lower anchor locations - models with 2nd row bench seat
Lower Anchors and Tethers for CHildren Syst ...
Rear-facing child restraint installation using LATCH
Before installing a child restraint in the Nissan Armada, carefully review all
warnings and precautions provided in the "Child safety" and "Child restraints" sections
of this m ...
