Chevrolet Sonic Repair Manual: Special Tools (Diagnostic Tools)

Chevrolet Sonic Repair Manual / Powertrain / Internal Combustion Powertrain Control / Engine Control / General / Special Tools (Diagnostic Tools)

Illustration	Tool Number/Description

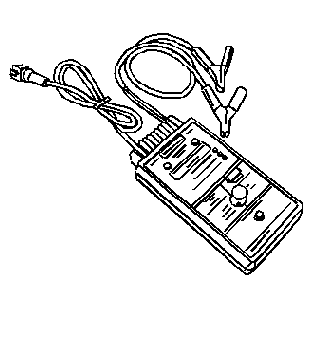

	CH-34730-2C J-34730-2C Injector Test Lamp

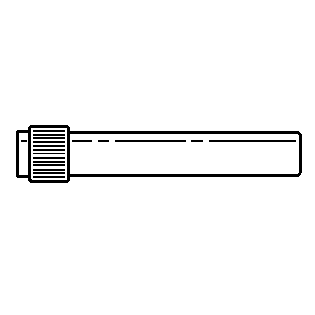

	CH-38641-B J-38641-B Diesel Fuel Quality Tester

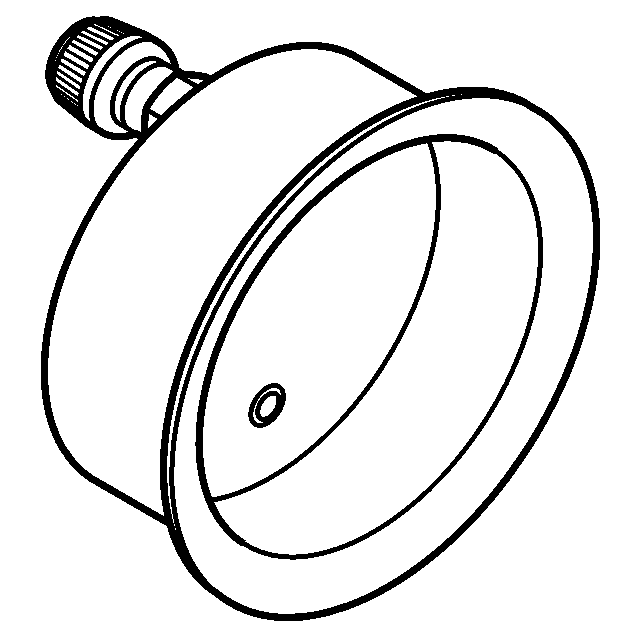

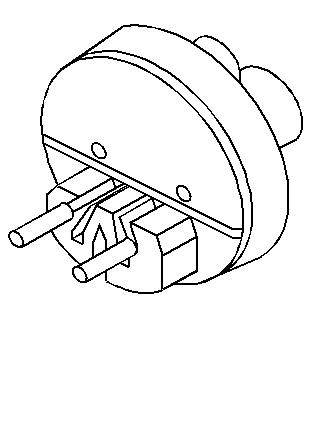

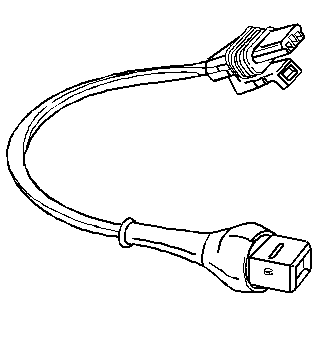

	CH-39021-301 J-39021-301 Fuel Injector Harness Adapter

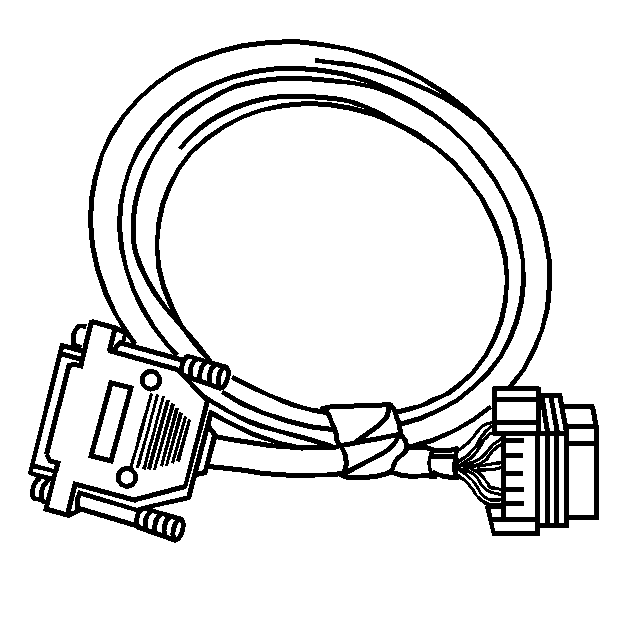

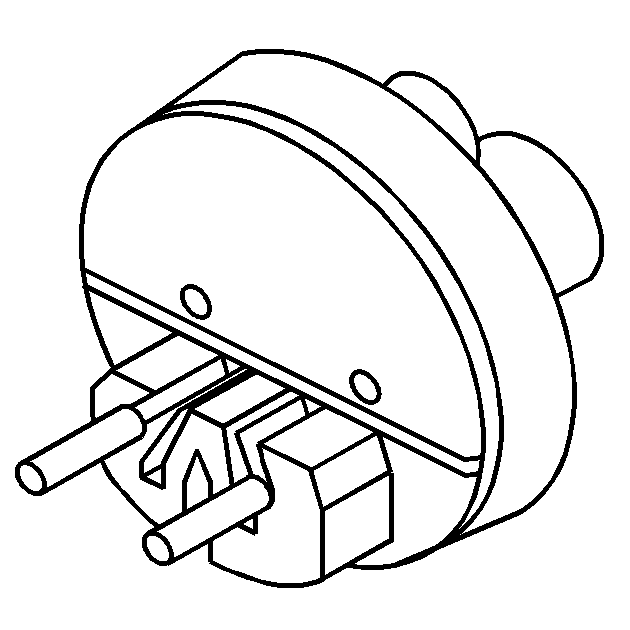

	CH-39021-460 J-39021-460 Fuel Injector Test Adapter

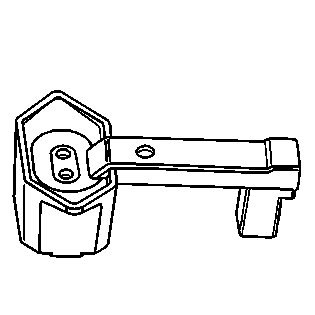

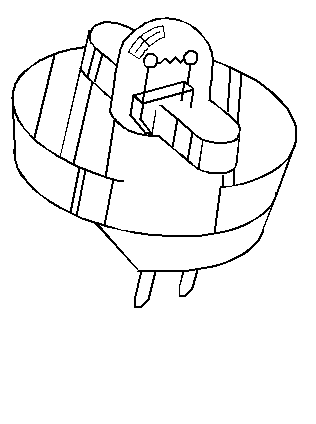

	CH-41415-30 GE-41415-30 J-41415-30 Fuel Tank Cap Adapter

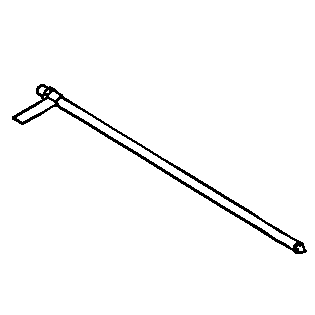

	CH-42960-2 J-42960-2 Fuel Flapper Door Holder

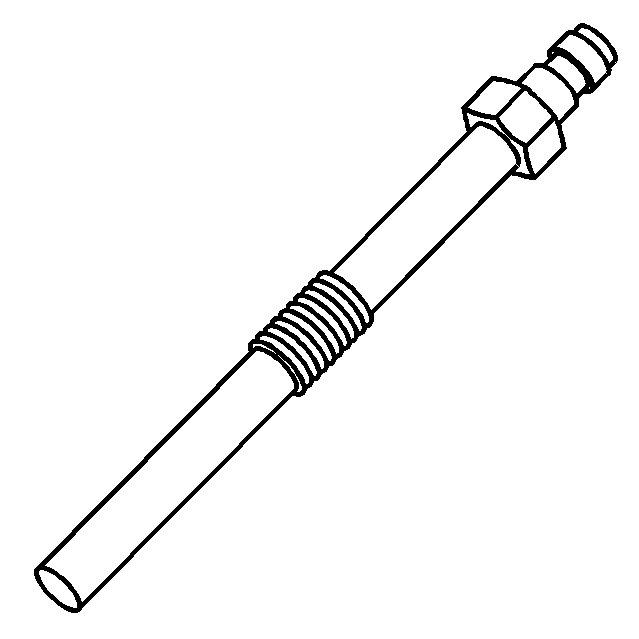

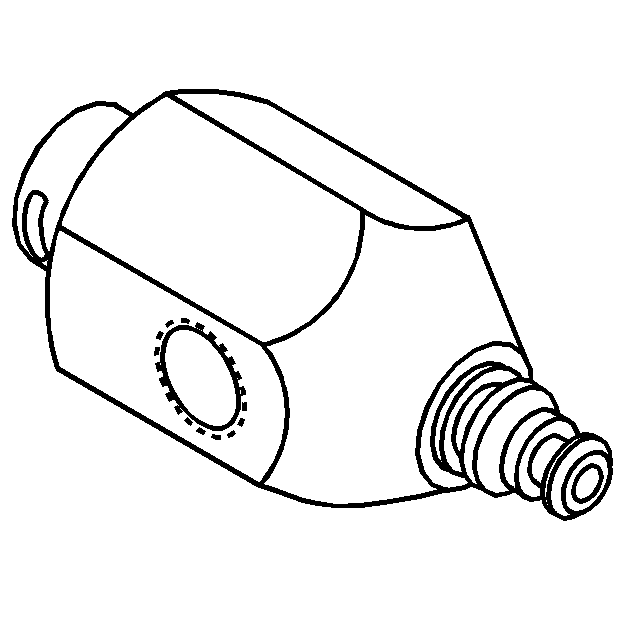

	CH-42982 J-42982 Fuel Pressure Gauge Adapter
	CH-44175-A J-44175-A Fuel Composition Tester

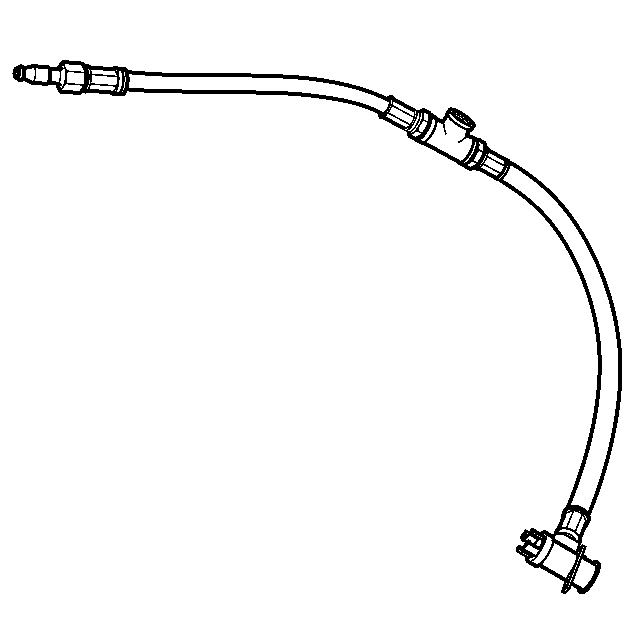

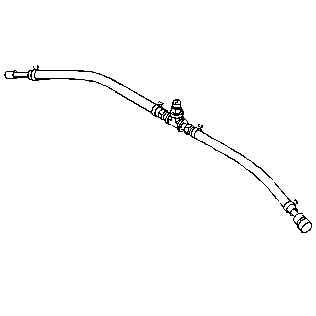

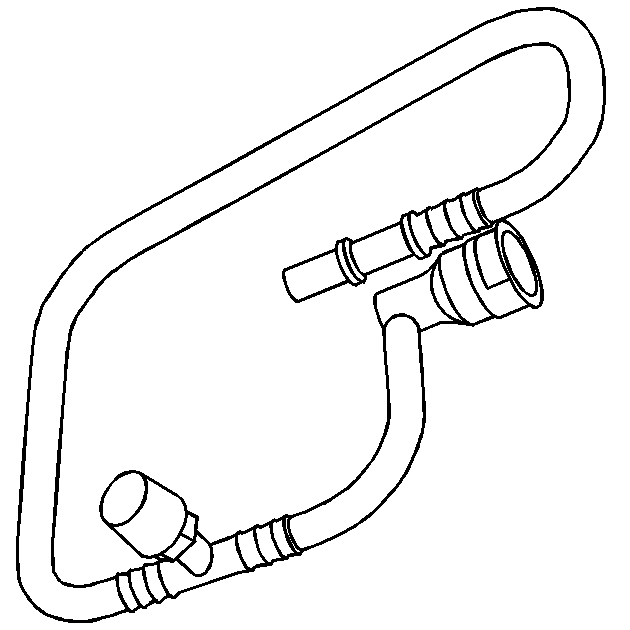

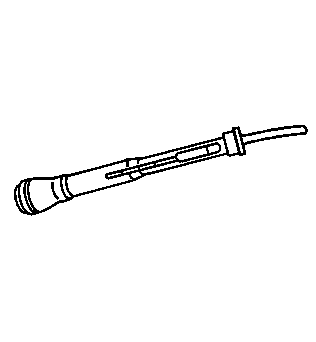

	CH-45004 J-45004 Fuel Tank Drain Hose

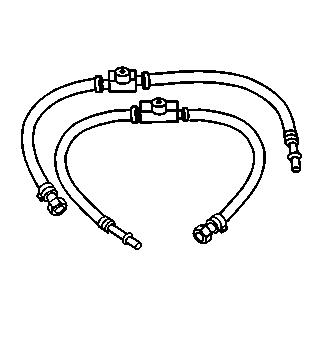

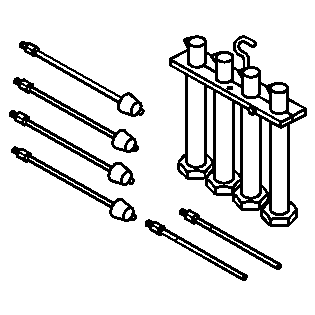

	CH-45873 J-45873 Fuel Return Volume Test Kit

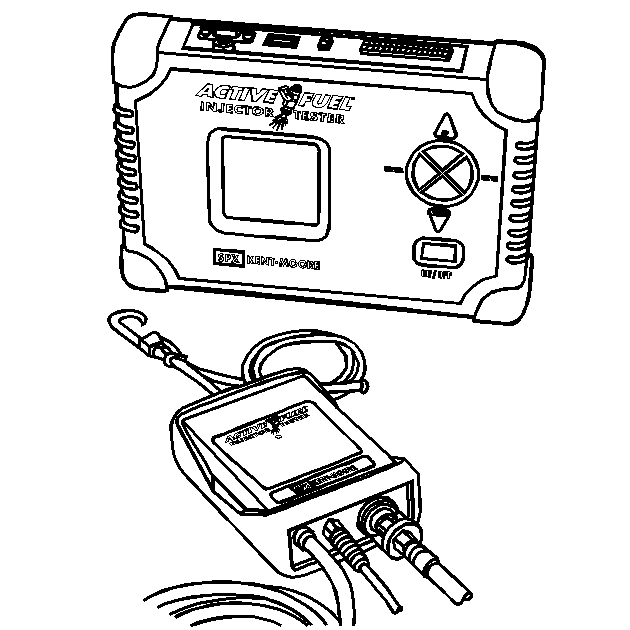

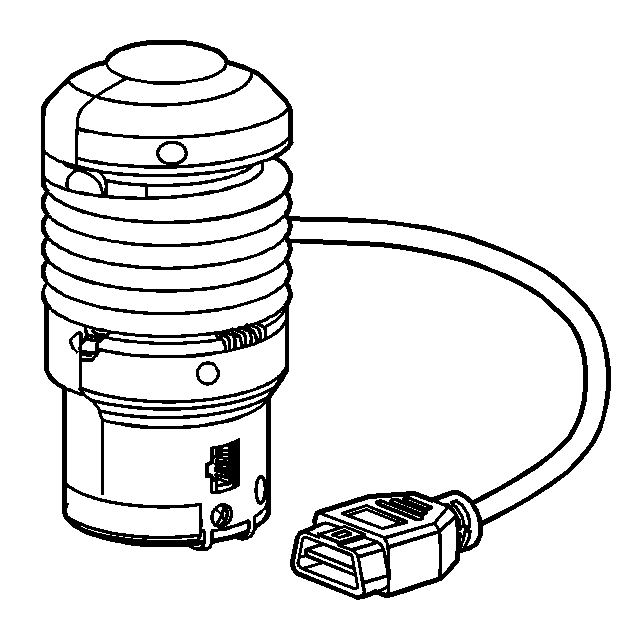

	CH-47976 Active Fuel Injector Tester (AFIT)

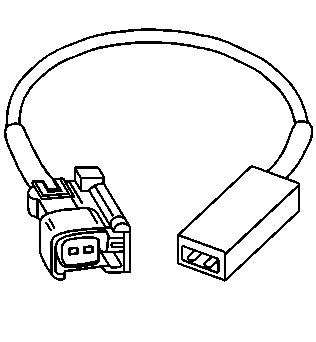

	CH-47976-75 Fuel Injector Harness Adapter

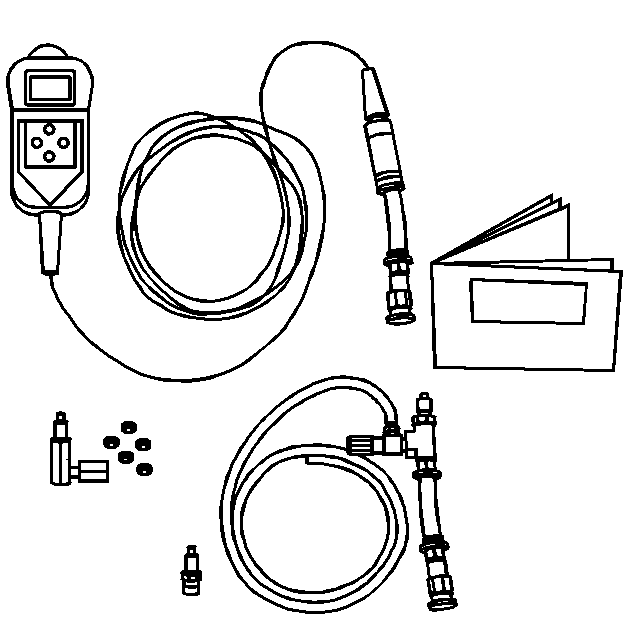

	CH-48027 Fuel Pressure Gauge

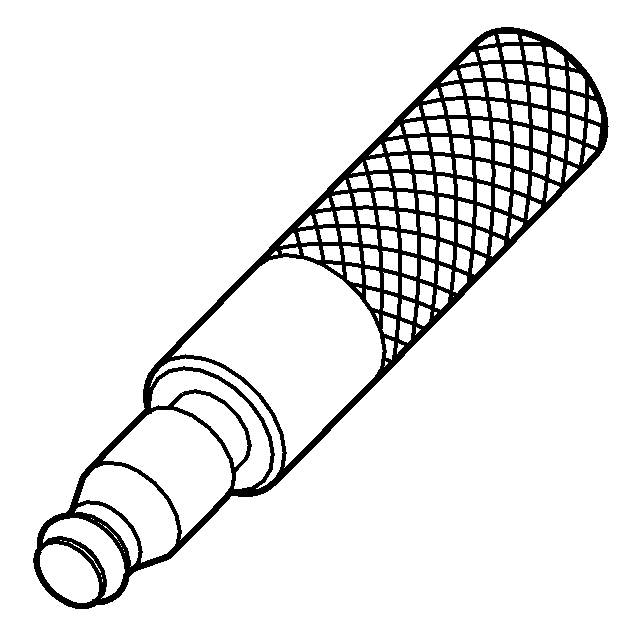

	CH-48096 EVAP Service Access Port Tool

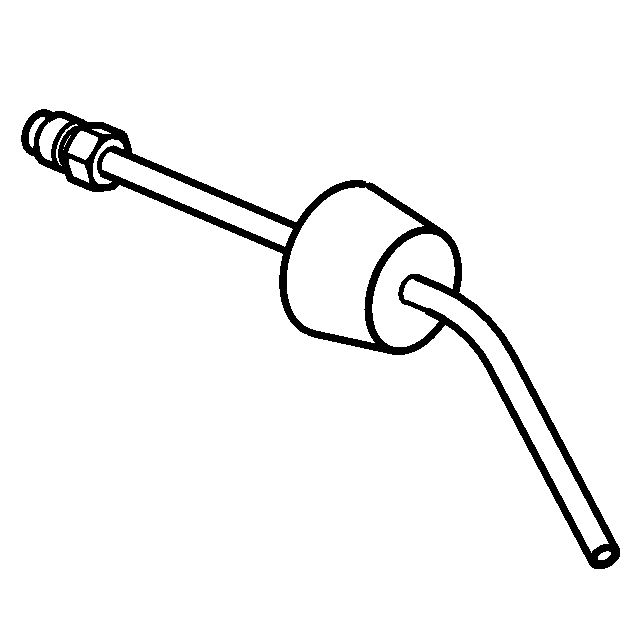

	CH-50375 Diesel Injector Return Line Pressure Adapter
	CH-50377-A Injector Return Line Cap
	CH-50378 Injector Return Leakage Test Adapter

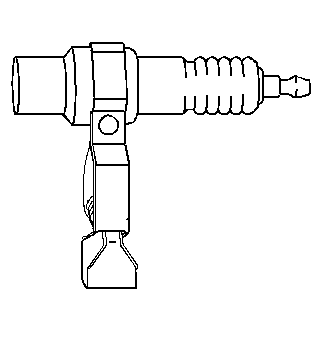

	EL-26792 J-26792 HEI Spark Tester
	EL-34730-405 J-34730-405 Injector Test Lamp
	EL-36169-HD Heavy Duty Fused Jumper

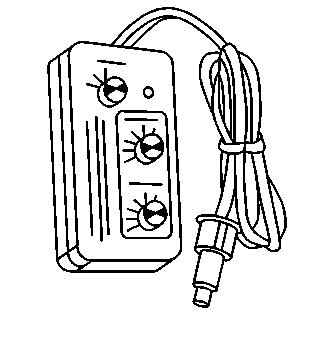

	EL-38522-A J-38522-A Variable Signal Generator
	EL-39021 J-39021 Fuel Injector Coil Balance Tester
	EL-39021-460 J-39021-460 Fuel Injector Test Adapter
	EL-42598-B J-42598-B Vehicle Data Recorder

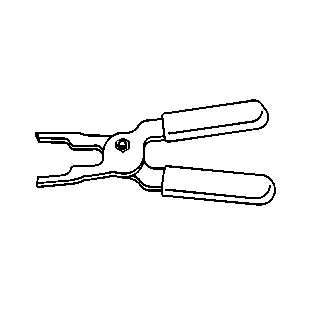

	EL-43244 J-43244 Relay Puller Pliers
	EL-44603 J-44603 Injector Test Lamp

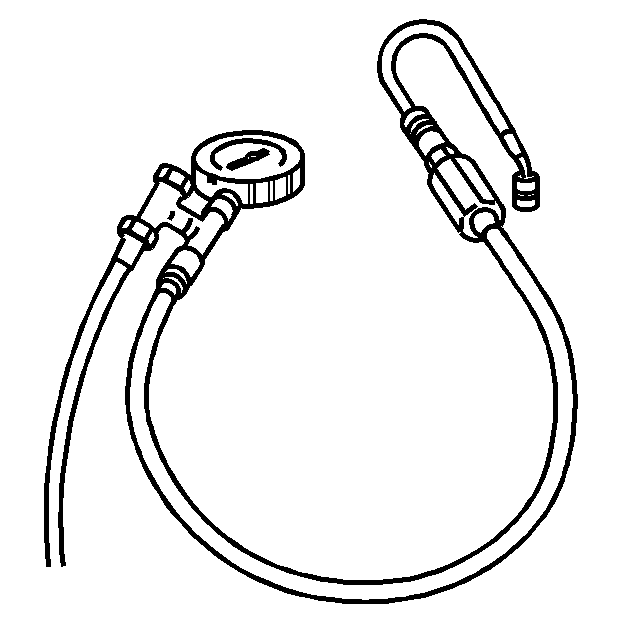

	EN-34730-91 J-34730-91 KM-J-34730-91 Pressure Tester

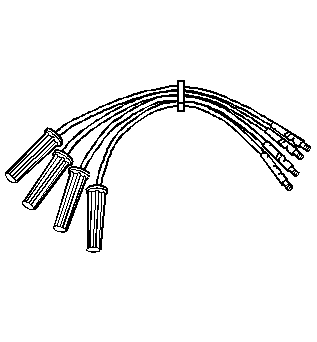

	EN-36012-A J-36012-A Ignition System Diagnosis Harness

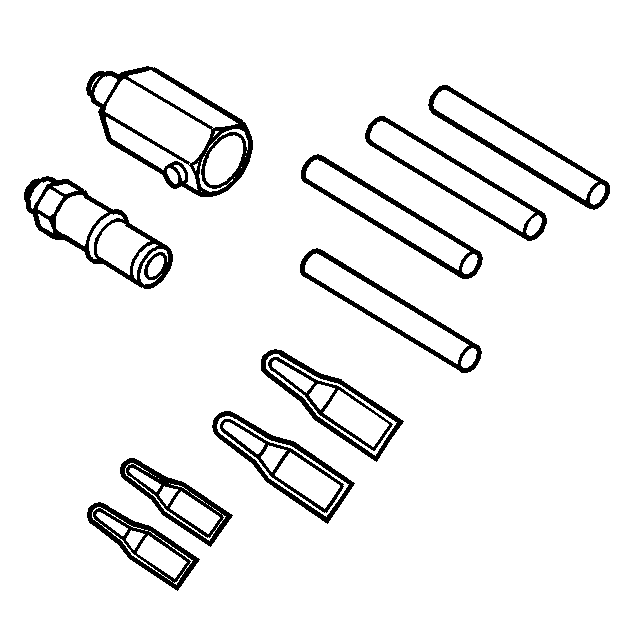

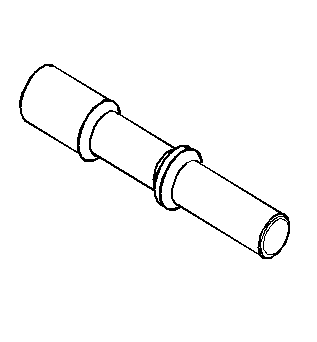

	EN-37287 J-37287 Fuel Line Shut-off Adapters
	EN-39021-210 J-39021-210 Injector Tester Adapter Box
	EN-41413-311 J-41413-311 EVAP Plug

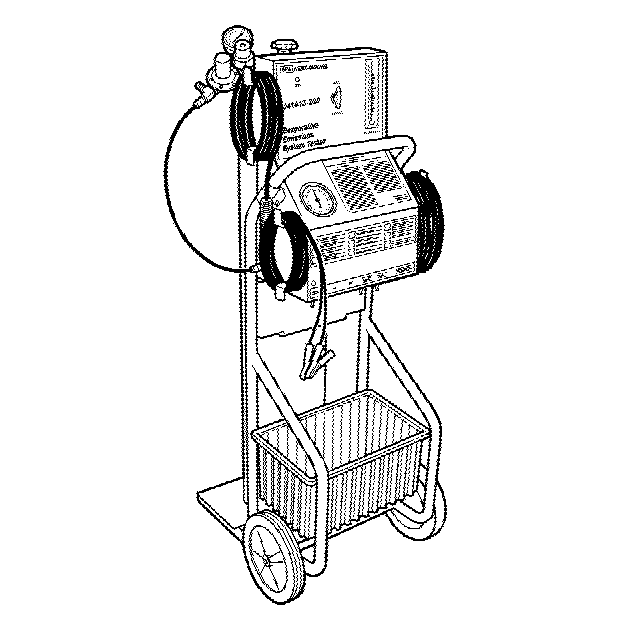

	GE-41413-A EN-41413-A J-41413-A Evaporative Emissions System Tester (EEST)
	EN-41413-VLV J-41413-VLV EVAP Service Port Vent Fitting

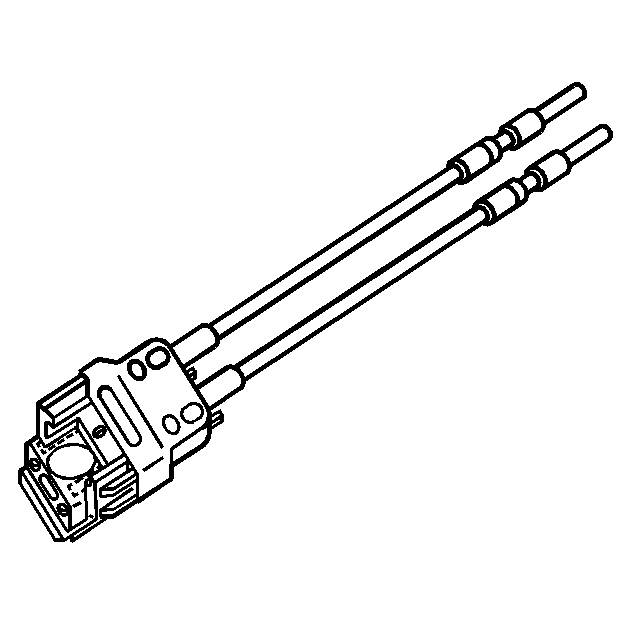

	EN-44602 J-44602 Injector Test Adapter

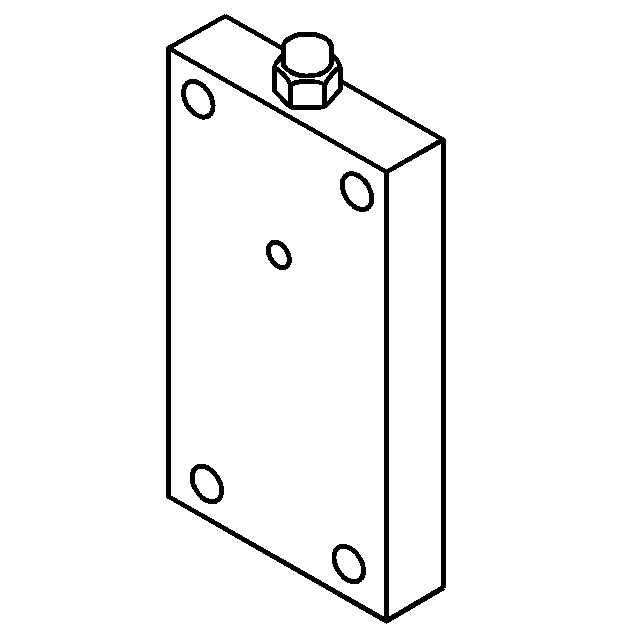

	EN-45873-30 J-45873-30 Injector Flow Test Adapter

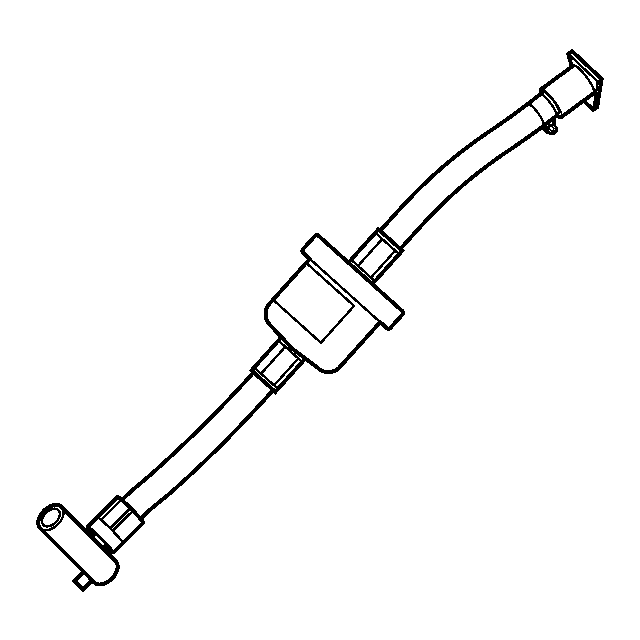

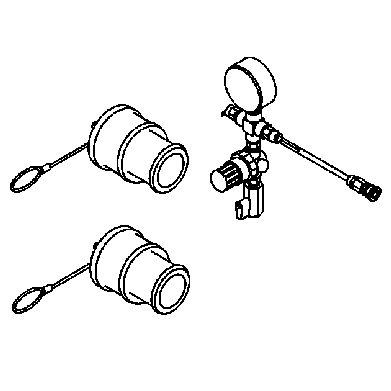

	EN-46091 J-46091 Charge Air Cooler Tester
	EN-46091-15A J-46091-15A Diesel Engine Pressure Test Adapter
	EN-46091-5 J-46091-5 Charge Air Cooler Tester Adapter

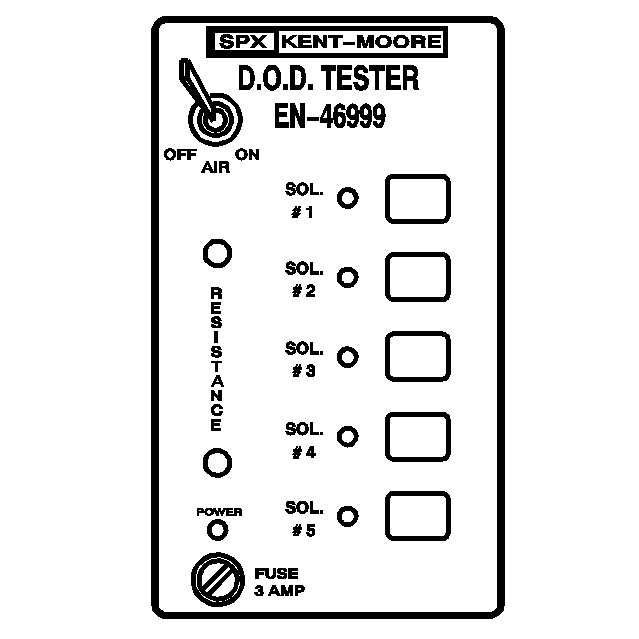

d.o.d.testeren-46999	EN-46999 Displacement On Demand Electric Tool

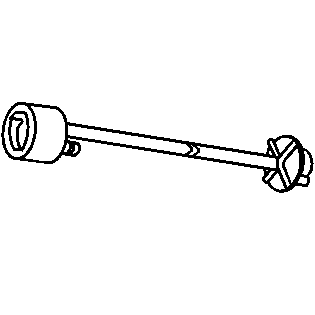

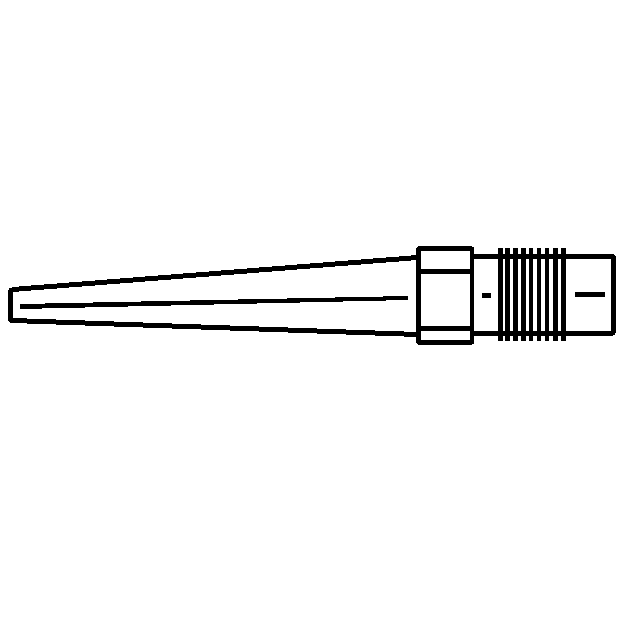

	EN-47603 Compression Gauge Adapter

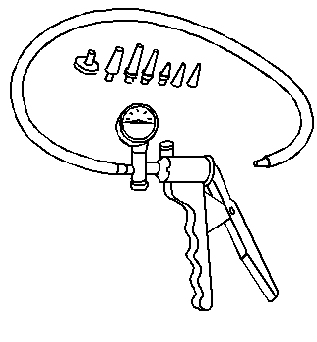

	GE-23738-A J-23738-A Vacuum Pump
	GE-41413-300 EN-41413-300 J-41413-300 EVAP Cap and Plug Kit

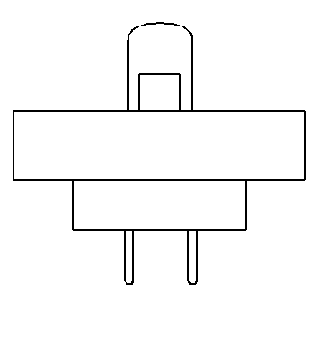

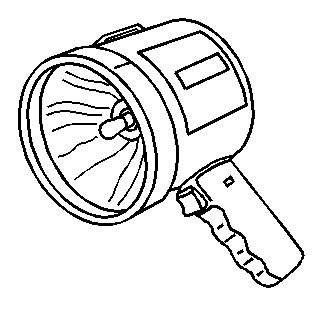

	GE-41413-SPT J-41413-SPT High Intensity White Light
	GE-41415-50 J-41415-50 Fuel Tank Cap Adapter
	GE-41415-60 Engine Induction System Leak Test Adapter

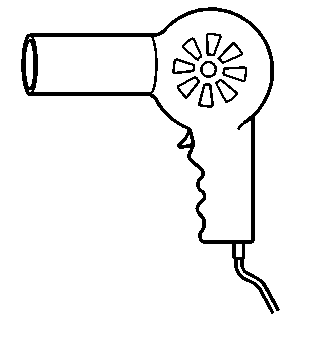

	J-25070 Heat Gun 260?99?C (500?50?F)
	J-34730-375 Injector Test Lamp

Special Tools

Illustration Tool Number/Description CH 9127-E SA 9127-E Fuel Pressure/Flow Adapter ...
