Chevrolet Sonic Repair Manual: Steering Wheel Horn Contact Replacement

Chevrolet Sonic Repair Manual / Body / Body Electrical / Horn / Steering Wheel Horn Contact Replacement



Steering Wheel Horn Contact Replacement

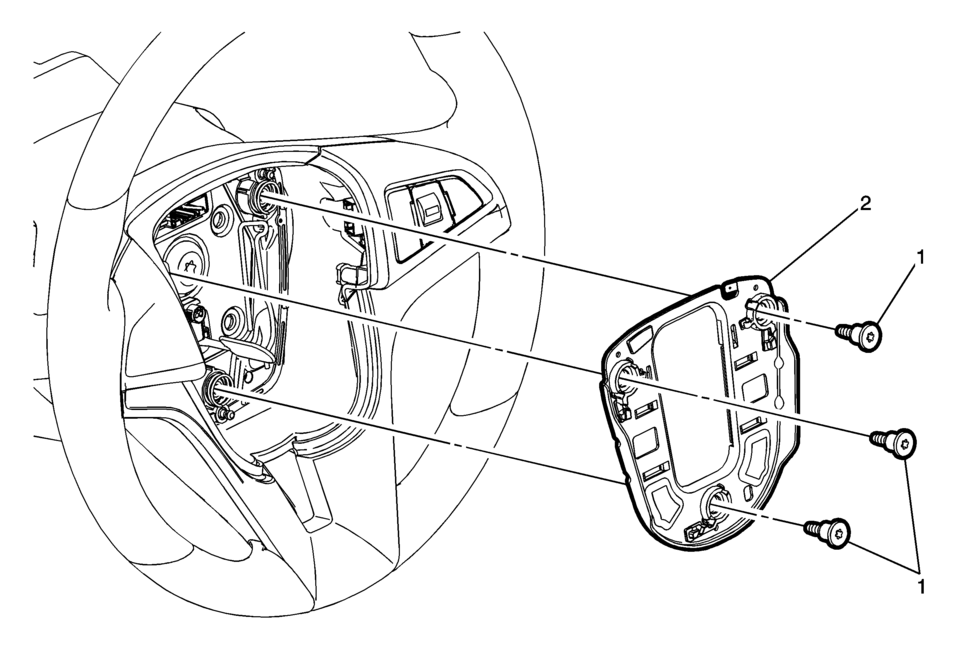

Callout

Component Name

Preliminary Procedure

Remove the steering wheel inflatable restraint module. Refer to Airbag Steering Wheel Module Replacement.

1

Steering Wheel Horn Contact Spring Retainer Bolt (Qty:?€‰3)

Caution:

Refer to Fastener Caution.

Tighten


5.5?€‰Y(49?€‰lb?€‰in)

2

Steering Wheel Horn Contact Assembly

Procedure

Disconnect the electrical connectors.
